Vertical High Pressure Steam Sterilizer

Counter Pressure Autoclave VA-FD

Model: VA-FD
Chamber Capacity:  35L, 50L, 75L, 100L, 120L, 150L
Class: Class N
Machine Material: Fully stainless steel 304
Display: Digital display

Control:Microcomputer automatic control
Door: Bolt type door, safety lock door system
Configuration: 2 pcs stainless steel baskets

Production time: 15 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.

Brand:Sada Medical
Product Origin:China
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.

Application:

This product is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is an ideal equipment for aseptic test in Food Research Institute.

Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time：20 – 25 working days.

Features of Vertical High Pressure Steam Sterilizer

Fully stainless steel
Equipped with the timer to automatically control the sterilization time
The sterilization process is automatically controlled
LED display of working status, touch key
Auto discharge the cool air, steam discharging automatically
Automatically shut off with beep reminding after sterilization finished
With over pressure and over temperature protection

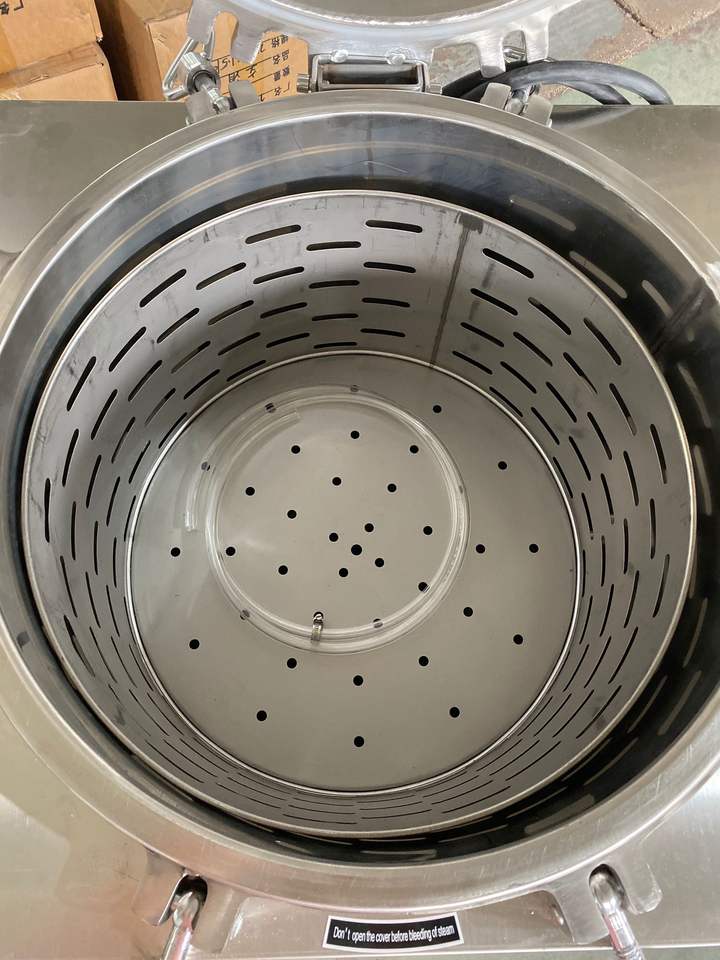

With standard two stainless steel sterilizing baskets
Power supply can be customized FOR FREE

Technical Specifications

Model	VA-FDF35	VA-FDF50	VA-FDF75	VA-FDF100	VA-FDF120	VA-FDF150
Capacity	35L	50L	75L	100L	120L	150L
Chamber Size	Φ318x450mm	Φ340x550mm	Φ400x600mm	Φ440x650mm	Φ480x660mm	Φ510x740mm
Working Pressure	0.22MPa
Working Temperature	134℃
Max working pressure	0.23Mpa
Heat average	≤±1℃
Timer range	0-60min or 0-99hour59min
Temperature adjust range	105-134℃
Power	1×2.5KW/AC220V.50Hz	2×1.5KW/AC220V.50Hz	3×1.5KW/AC220V.50Hz		3×2.0KW/AC220V.50Hz
Overall Dimension	470x450x840mm	520x500x970mm	550x530x990mm	580x560x1060mm	630x610x1130mm	660x640x1130mm
Transport dimension	570x570x1000mm	610x610x1130mm	650x650x1150mm	680x680x1220mm	730x730x1280mm	760x760x1280mm
G.W/N.W	84KG /63KG	82KG /74KG	118KG /93 KG	133KG /105KG	126KG/101KG	136KG/111KG

Video of VA-SG Autoclave:

SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
