VA-SX Multifuctional automatic internal cycle steam sterilizer with drying function

Automatic Medical Vertical Autoclave VA-SM

Model: VA-SX
Chamber Capacity: 35L, 50L, 75L, 100L
Class: Class N
Machine Material: Fully stainless steel 304
Display: Digital display

Control:Microcomputer automatic control
Door: Hand wheel type door, safety lock door system

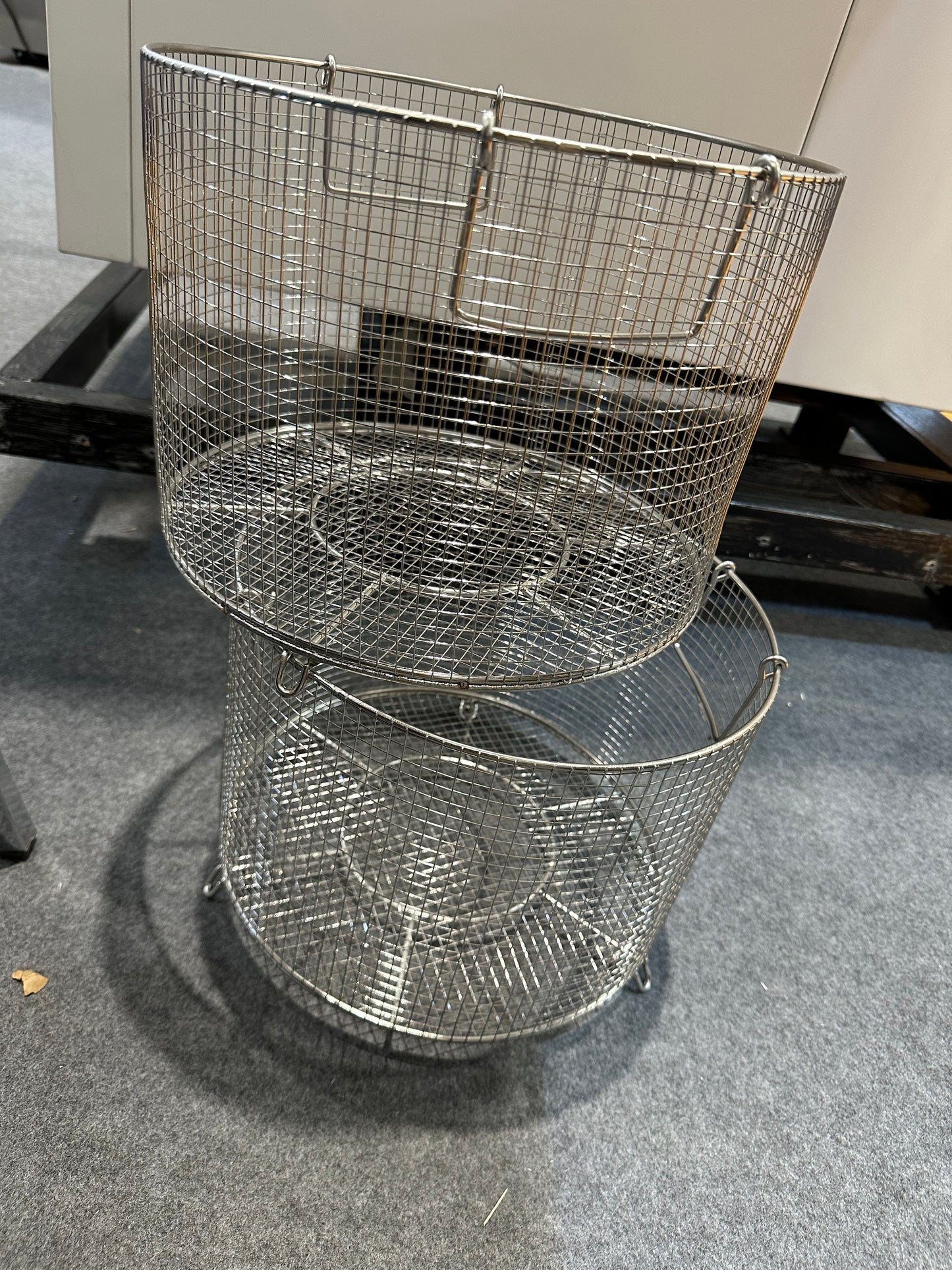

Configuration: 2 pcs stainless steel baskets

Production time: 15 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.

Brand:Sada Medical
Product Origin:China
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.

Features

Hand wheel translation and quick opening structure

Internal steam cycle

High quality stainless steel material

With drying function

Microcomputer automatic control,arbitrary setting sterilization parameters

Safety interlocking device

Digital display and Touch buttons

Standard test interface

Self-expanding seal

With automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.

With stainless steel bucket or basket

Buzzer reminder after sterilization, automatic stop.

Automatic discharge of cold air, automatic steam exhaust after sterilization.

* Optional external printer

Technical Specifications

Model   Technical parameter	VA-SX35	VA-SX50	VA-SX75	VA-SX100
Volume	35L	50L	75L	100L
Power	3.5kW	3.5kW	4.5kW	4.5kW
Voltage	AC 220V、50HZ
Rated working pressure	0.22Mpa
Rated working temperature	134℃
Sterilization temperature	50℃~134℃
Sterilization time setting range	4~120 min
Drying time setting range	0~240min
Chamber volume	Ø350×400	Ø350×525	Ø400×625	Ø450×650
Bucket dimension	Ø330×320	Ø330×460	Ø380×560	Ø420×540
Basket dimension（optional）	Ø320×350	Ø320×240×2	Ø360×280×2	Ø410×300×2
Outer dimension	698×498×940	698×498×1110	770×570×1185	788×588×1255
Packing size (L× W× H )mm	790×610×1130	800×600×1230	840×610×1310	870×650×1380
Gross/net weight	125/110KG	130/112KG	145/114KG	156/129KG



Video of VA-SX Autoclave:

SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
