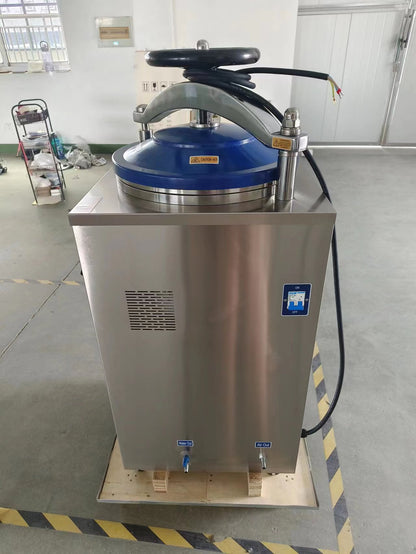

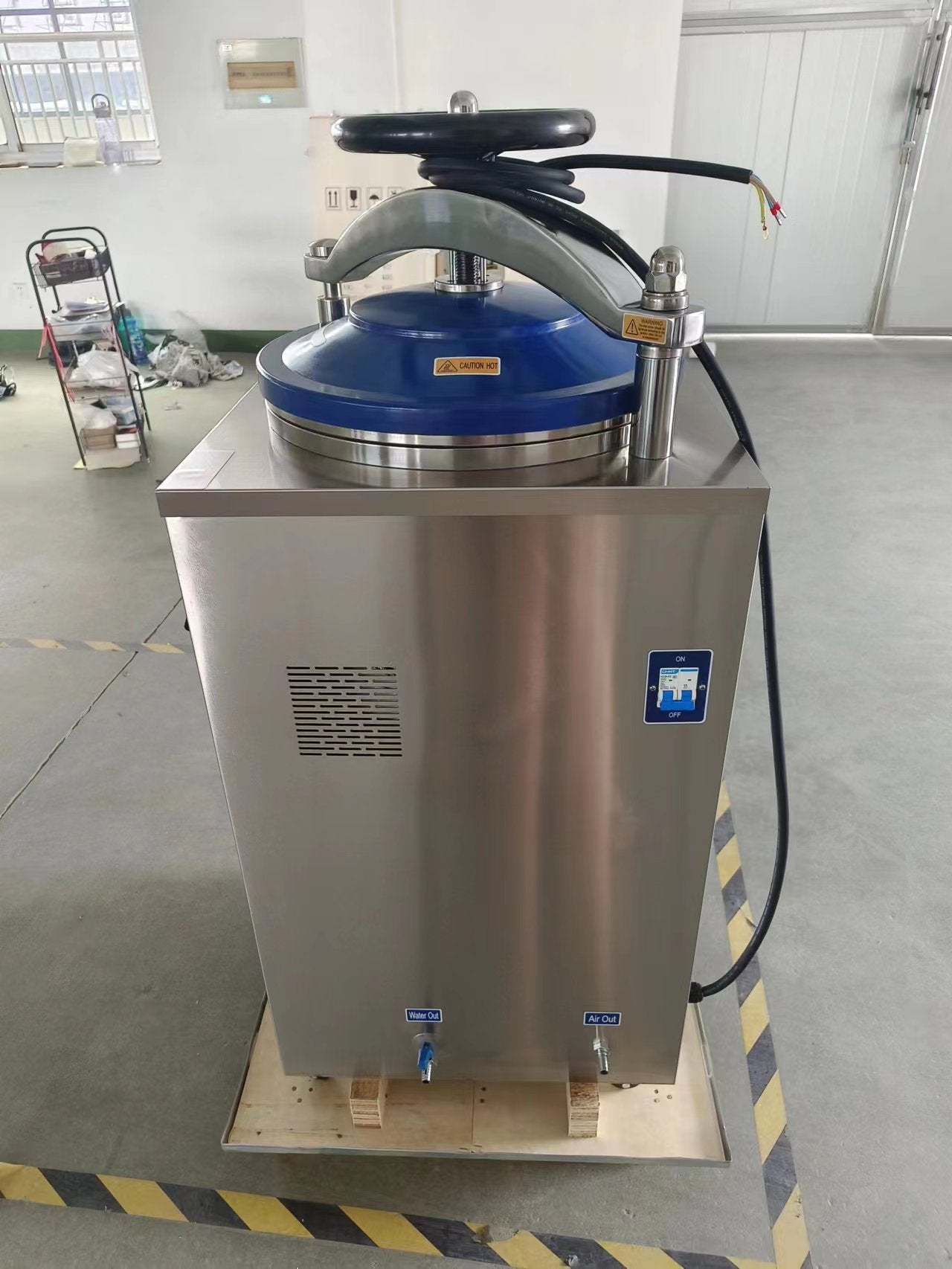

VA-SL displayed automatic vertical autoclave

VA-SL displayed automatic vertical autoclave

Automatic Medical Vertical Autoclave VA-SL

Model: VA-SL
Chamber Capacity: 35L, 50L, 75L, 100L
Class: Class N
Machine Material: Fully stainless steel 304
Display:Digital display


Control:Microcomputer automatic control
Door: Hand wheel type door, safety lock door system
Configuration: 2 pcs stainless steel baskets

Production time: 15 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.

Brand:Sada Medical
Product Origin:China
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.

Features

  • Features

  • Hand wheel translation and quick opening structure
  • High quality stainless steel material
  • Microcomputer automatic control, arbitrary setting sterilization parameters
  • Safety interlocking device

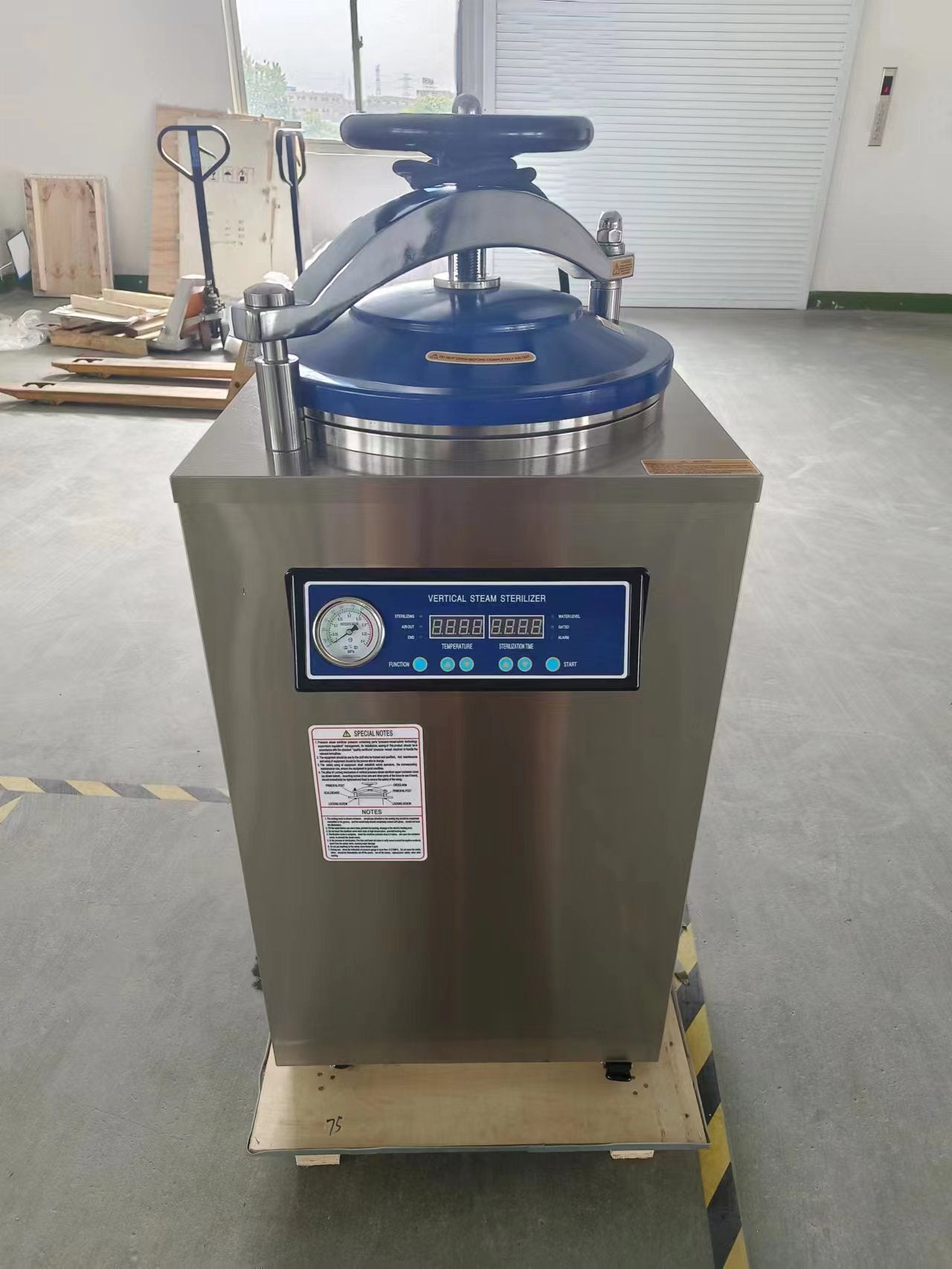

  • Digital display and Touch buttons
  • Standard test interface
  • Self-expanding seal
  • With automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.
  • With stainless steel bucket or basket
  • Buzzer reminder after sterilization, automatic stop.
  • Automatic discharge of cold air,automatic steam exhaust after sterilization.
  • *Optional external printer

Technical Specifications

Model



Technical parameter

VA-SL35

VA-SL50

VA-SL75

VA-SL100

Volume

35L

50L

75L

100L

Power

3.5kW

3.5kW

4.5kW

4.5kW

Voltage

AC 220V、50HZ

Rated working pressure

0.22Mpa

Rated working temperature

134℃

Sterilization temperature

50℃~134℃

Sterilization time setting range

4~120 min

Drying time setting range

0~240min

Chamber volume

Ø350×400

Ø350×525

Ø400×625

Ø450×650

Bucket dimension

Ø330×320

Ø330×480

Ø380×540

Ø430×550

Basket dimension(optional)

Ø320×350

Ø320×240×2

Ø360×280×2

Ø410×300×2

Outer dimension

480×480×1020

480×480×1050

525×525×1200

555×555×1250

Packing size

(L× W× H )mm

580×630×1130

580×630×1230

630×680×1290

690×650×1410

Gross/net weight

79/58KG

106/80KG

120/90KG

133/106KG



Video of VA-SL Autoclave:


SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:


Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
