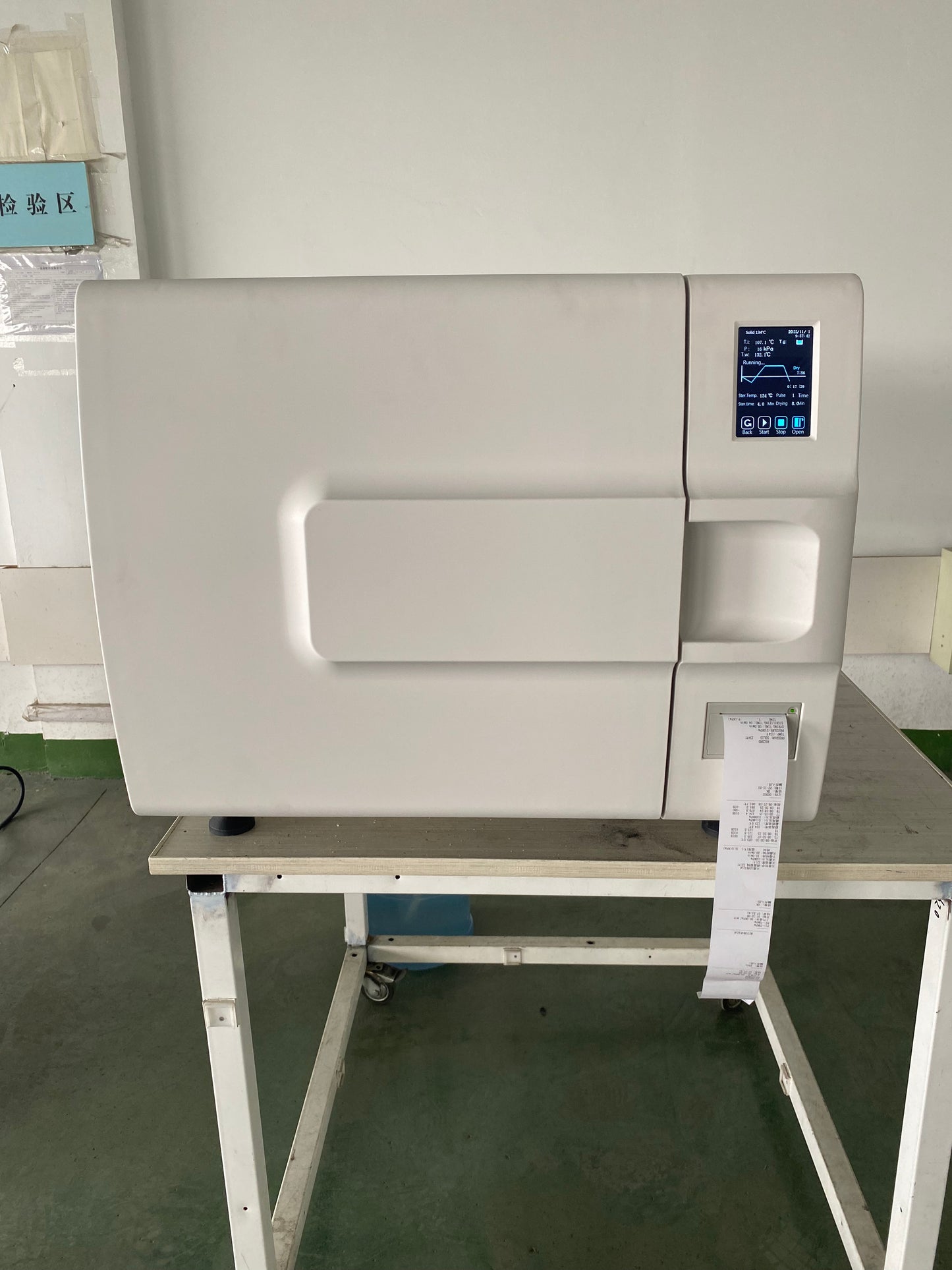

Type B TS-DDV45L table top steam sterilizer with automatic door
Type B TS-DDV45L table top steam sterilizer with automatic door
Type B TS-DDV45L table top steam sterilizer with automatic door
Model: TS-DDV
Chamber Capacity: 18L, 23L, 45L
Chamber Material: Stainless steel 304
Display: LED display
Control: microcomputer
Door: Safety lock door system
Configuration: Drying device, printer, tray
Production time: 20 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.
Brand: Sada Medical
Product Origin: China
Shipping Port: Shanghai Ningbo Qingdao
Application:
Medical Instrument Sterilization Autoclave are widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, funeral homes, dentistry, and prosthetics fabrication.
They vary in size and function depending on the media to be sterilized. Typical loads include laboratory glassware, other equipment and waste, surgical instruments and medical waste.
Sterilization Objects: Unwrapped or Wrapped instruments, Sugircal instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time：5 – 10 working days.
Features of Table Top Pressure Steam Sterilizer

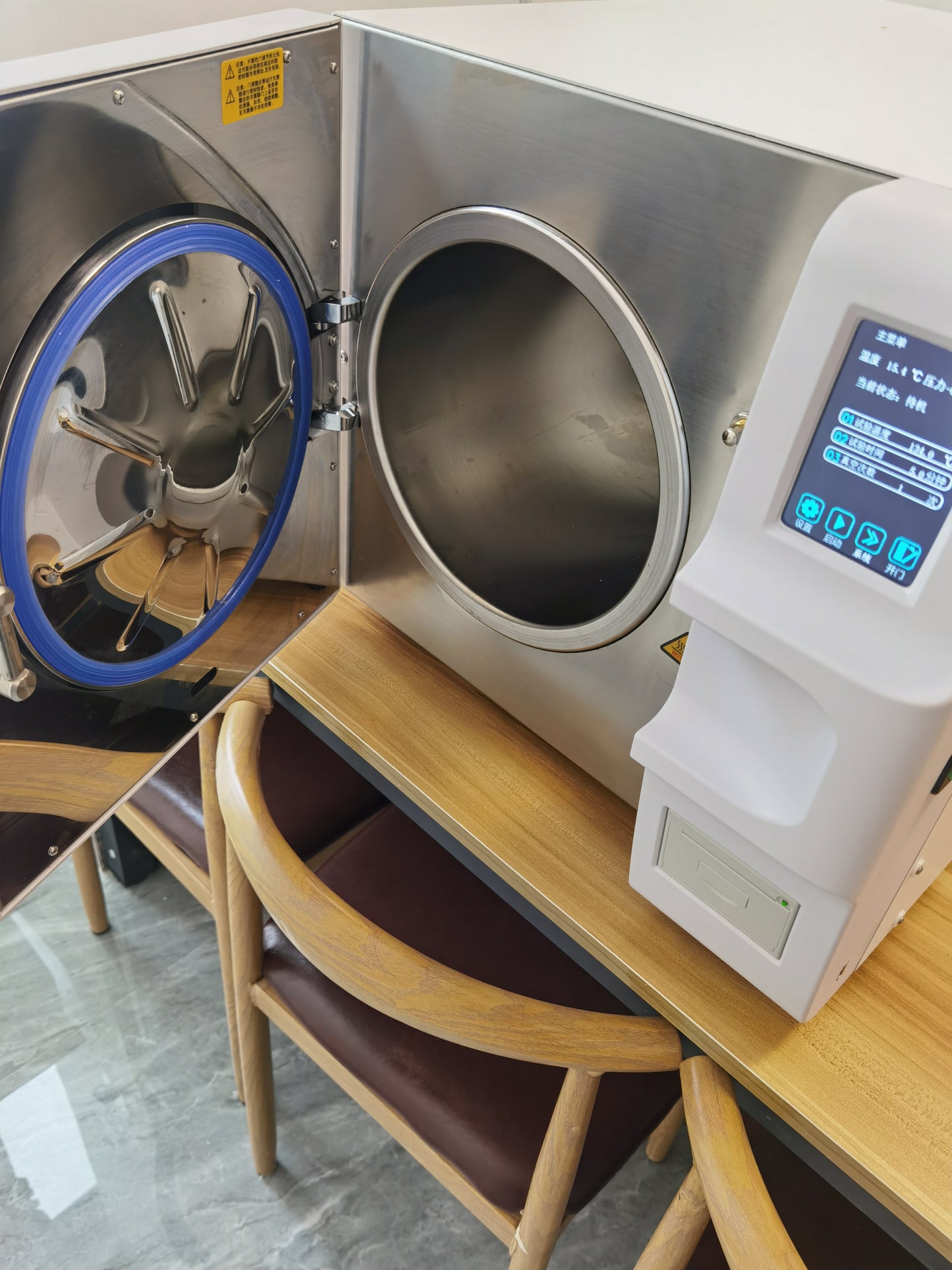

- Automatic door switch
- Quality stainless steel inner tank, sealed cover
- Microcomputer control
- Safety interlocking device
- With BD test,HELIX test, Vacuum test.
- LED display and inductive operation
- Equipped with standard test interface
- Open-type top water tank
- European CLASS B standard.
- With automatic protection function: over temperature protection, over pressure protection, low water level protection, anti dry burning, safety door lock.
- Three times per-vacuum
- Buzzer reminder after sterilization, automatic stop.
- Automaticdischarge of cold air, automatic steam exhaust after sterilization.

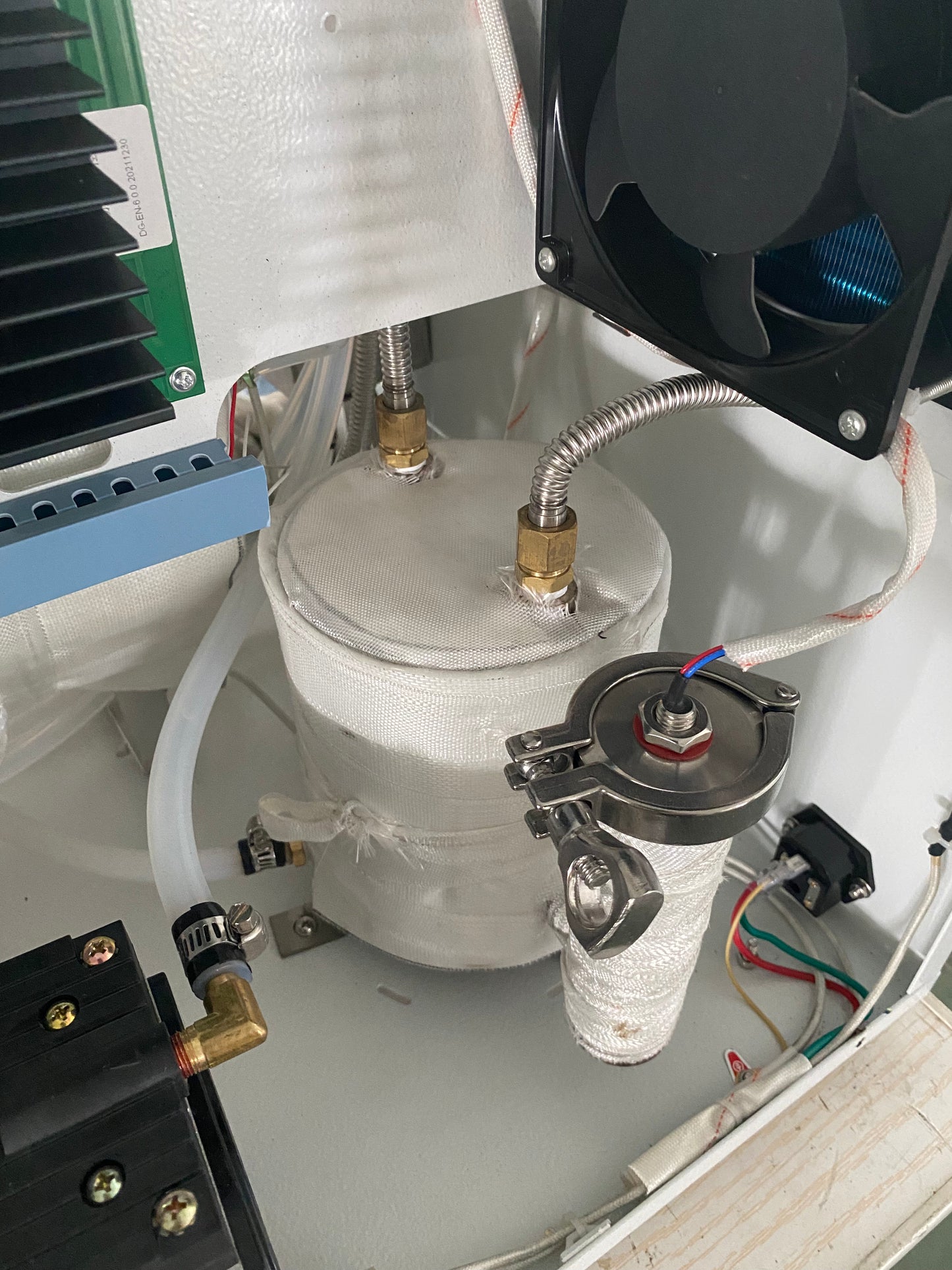

- Built-in steam generator to provide saturated steam quickly
- With built-in printer, USB function and U disk
Specifications:
| Model
Technical parameter |
TS-DDV18 | TS-DDV23 | TS-DDV45 |
| Volume | 18L | 23L | 45L |
| Power | 2.2kw | 2.2kw | 3.5kw |
| Voltage | 110V/220V,60HZ/50HZ | ||
| Rated working pressure | 0.22Mpa | ||
| Rated working temperature | 134℃ | ||
| Chamber volume | Ø250×370 | Ø250×470 | Ø316×615 |
| Outer dimension | 505×620×450 | 505×710×450 | 657×870×575 |
| Packing size (L×W× H ) | 670×560×510 | 760×560×510 | 980×750×630 |
| Gross/net weight | 62/53KG | 65/58KG | 142/105KG |
Video of TS-DDV Autoclave:
SADA MEDICAL Quality Standards:
ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices
CERTIFICATES:
SADA MEDICAL Workshop:
Catalog, Brothures and User Manual Please refer below Link:
https://www.sadamedical.com/pages/catalog-download
Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.
If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
