SD-1045 ULTRASONIC WASHING RACK WITH FOUR TANKS

ULTRASONIC WASHING RACK WITH FOUR TANKS

Brand: SADA Medical

Model NO.: SD-1045
Product Origin:China

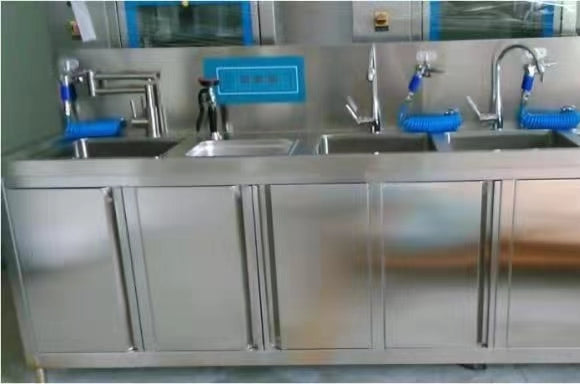

Equipment composition: three-slot stainless steel cleaning tank with embedded ultrasonic, high-pressure water gun, high-pressure air gun, air compressor, eyewash, etc.
Product model: SD-1045 3-slot cleaning tank
Inner tank size: 500*400*250mm. All sizes can be customized, and the outer size can be customized according to the site and customer requirements.
Product introduction:
1. With cold and hot water interfaces, large flow and can be freely adjusted; the countertop cabinet is made of 304 stainless steel with cabinet doors for cleaning equipment.
2. The inner tank is made of SUS304 stainless steel, with a thickness of 1.2mm, and is arc-shaped and stretched in one piece. The surface is smooth, easy to clean, and wear-resistant.
3. The cabinet door is made of SUS304 high-quality stainless steel CNC molding to ensure the strength of the door. The door is a double-leaf structure.
4. The countertop and the cleaning tank are designed with special anti-flooding edges around them. The liquid splashed on the countertop will flow into the sewer to protect the safety of the operator.
5. The height of the stainless steel cleaning tank countertop is 850mm, with a middle backboard, and the overall height including the backboard is 1300mm. The backboard height can be customized according to customer requirements.
6. Drainage system uses: high-quality drain; high-quality PVC steel wire drainage hose and PVC-U special drainage pipe and pipe fittings.
7. High-pressure water gun air gun: The gun body is made of SUS304 stainless steel, equipped with a standard cleaning nozzle, suitable for different types of endoscope pipes, and withstands pressure of 0-0.8Mpa.
8. Air supply pipeline: Use high-quality special well-known brand pneumatic components, strong pressure bearing and long life.
9. Faucet: Use internationally renowned brand ceramic valve core and water outlet foaming filter, with hot and cold water interface.
Embedded ultrasonic cleaner:
Capacit: 52L
Ultrasonic power: 1000W
Time: 1-480min
Temperature: room temperature -80℃ adjustable.
Air compressor equipment:
Dimensions: 420*420*540mm
Power supply: 220V, capacity: 22L, pressure: 0.1-0.8Mpa
Rated power: 550W, exhaust volume: 120L/min, speed: 1400
Noise: ≦52
Used to provide air source for high-pressure air guns;
Working mode: low-noise oil-free air pump, stable pressure, connected to air gun for use;
It has good drying and exhaust effect, oil-free and silent, and the cleanliness of the equipment is more in line with the requirements.

After-sale Service: 1 year quality guarantee; Question response within 24 hours; Video or photos instruction guide.



SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices
