New Arrival Touch Screen Top Loading Vertical Pressure Steam Sterilizer

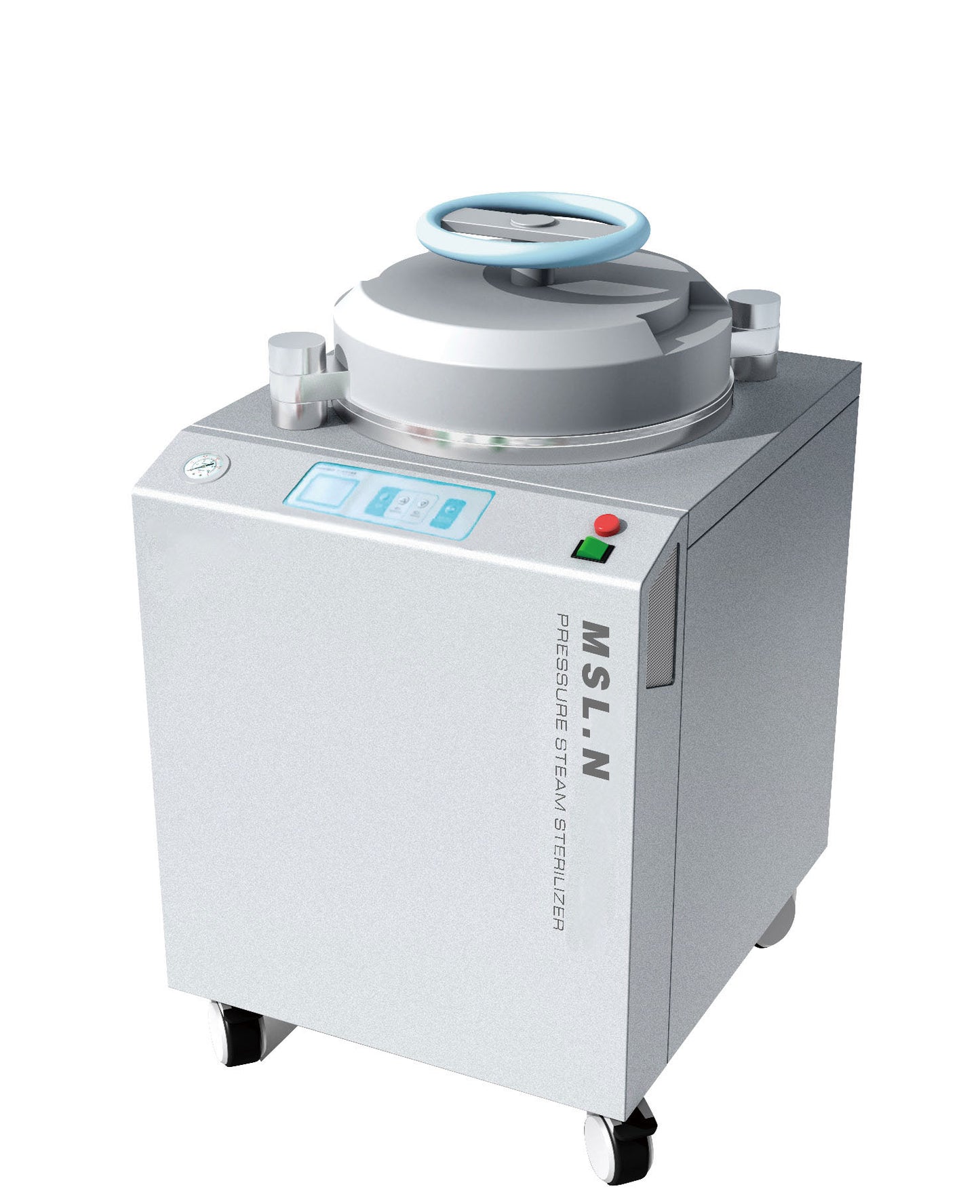

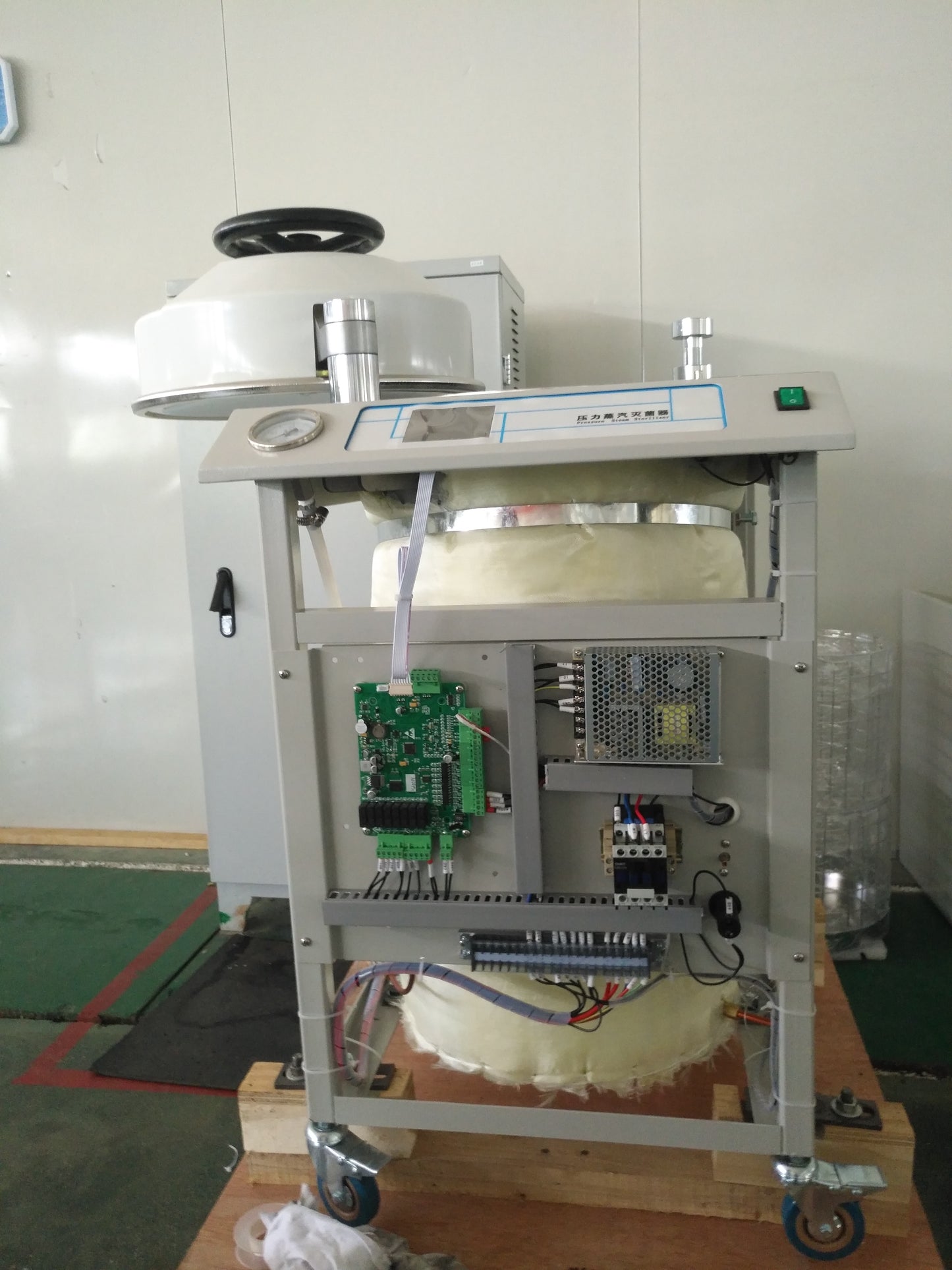

Vertical Autoclave High Pressure Steam Sterilizer MSL.N

Knob Type Pressure Steam Vertical Autoclave

Model: MSL.N

Sterilizing Volume: 35L, 50L, 80L, 100L

Features:

1. Adopt the microcomputer control system, with the powerful function and high reliability.
2. Built-in water tank.the whole process (water injection, heating, sterilization and drying) is automatic without manual supervision.

3. Displayed by the touch screen, so easy to operate.

4. It has the procedures of the uncovered instrument, the instrument package, the dressing package, the rubber product, the user-defined and the culture mediums for users to choose. Among them, the sterilization parameters of the user-defined and the type of the mediums can be adjusted as required.

5. There are many kinds of fault alarm system designed, each fault will have the prompt of alarm information.

6. There will be beep prompts after the sterilization cycle.

Brand:Sada Medical
Product Origin:China
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time: 10 – 15 working days.

Cylindrical Sterilizer Machine
This unit is ideal equipment for clinics,scientific research institutes and other organizations to sterilize surgical instruments,fabric glassed.culture media etc.
Cylindrical Sterilizer Machine Certification: CE mark; ISO 13485
Type: Pressure Steam Sterilizer Equipment.

Autoclave Sterilizer Safety Device:

1. The automatic protection device for over-temperature: The system stops heating to protect the sterilized articles from injury automatically,when the temperature inside the sterilization chamber exceeds the safe temperature value, .

2. The alarm device for dry burning prevention: The anti dry burning device will cut off the power supply of the heater and display the alarm information automatically,when the water level is lower than the heating pipe.

3. The safe interlock device for the door: It has passed the provincial technical appraisal and meets the requirements of the supervision regulation on safety technology of pressure vessel. Only when the door is closed in place, can the sterilizer start the working procedure. The door can not be opened,when there is pressure in the chamber.

4. The automatic safe valve for decompression:The safety valve opens and then releases the pressure,when the pressure in the sterilizing chamber exceeds the set pressure, .

5. The safety measures for Electric Power：The design has the protective function for the short circuit and the leakage of electricity to ensure the safety of the equipment and the persons.

Uses of the High Pressure Steam Sterilizer:
Medical Instrument Sterilization Autoclave are widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, funeral homes, dentistry, and prosthetics fabrication. They vary in size and function depending on the media to be sterilized. Typical loads include laboratory glassware, other equipment and waste, surgical instruments and medical waste.
Sterilization Objects: Unwrapped or Wrapped instruments, Sugircal instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.

After-sale Service: 1 year quality guarantee; Question responsed within 24 hours; Video or photos instruction guide.

• The main technical parameters:

• The design Pressure：0.26Mpa

• The design temperature：150℃

• The maximum working pressure：0.23MPa

• The selection of the sterilization temperature：105℃~136℃

• The accuracy of the temperature display：0.1℃

• The temperature uniformity：≤±0.5℃

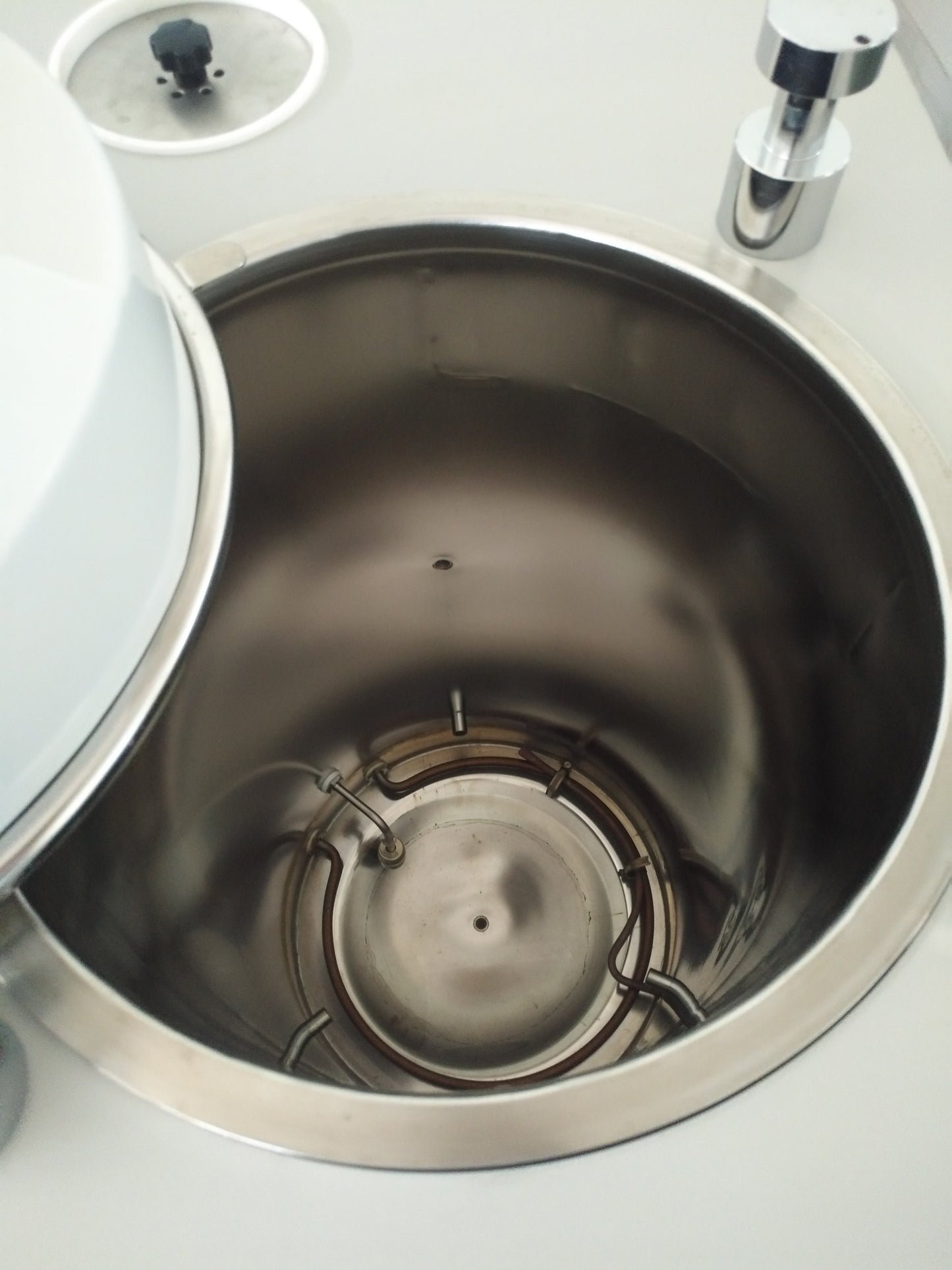

• The material of the chamber：SUS304 Stainless Steel

• The requirements for the water source: distilled water or purified water

Specifications:

Model	MSL.N	MSL.N	MSL.N	MSL.N
Capacity	35L	50L	80L	100L
The chamber （φ*L）mm	250*714mm	316*638mm	375*718mm	370*931mm
Overall dimension（L*W*H）mm	450*380*882mm	680*508*910mm	755*528*1040mm	755*528*1200mm
Net weight	55KG	68KG	80KG	105KG
Voltage supply	220V	220V	220V	220V
Frequency	50HZ	50HZ	50HZ	50HZ
Power	1500W	2000W	3000W	3000W
