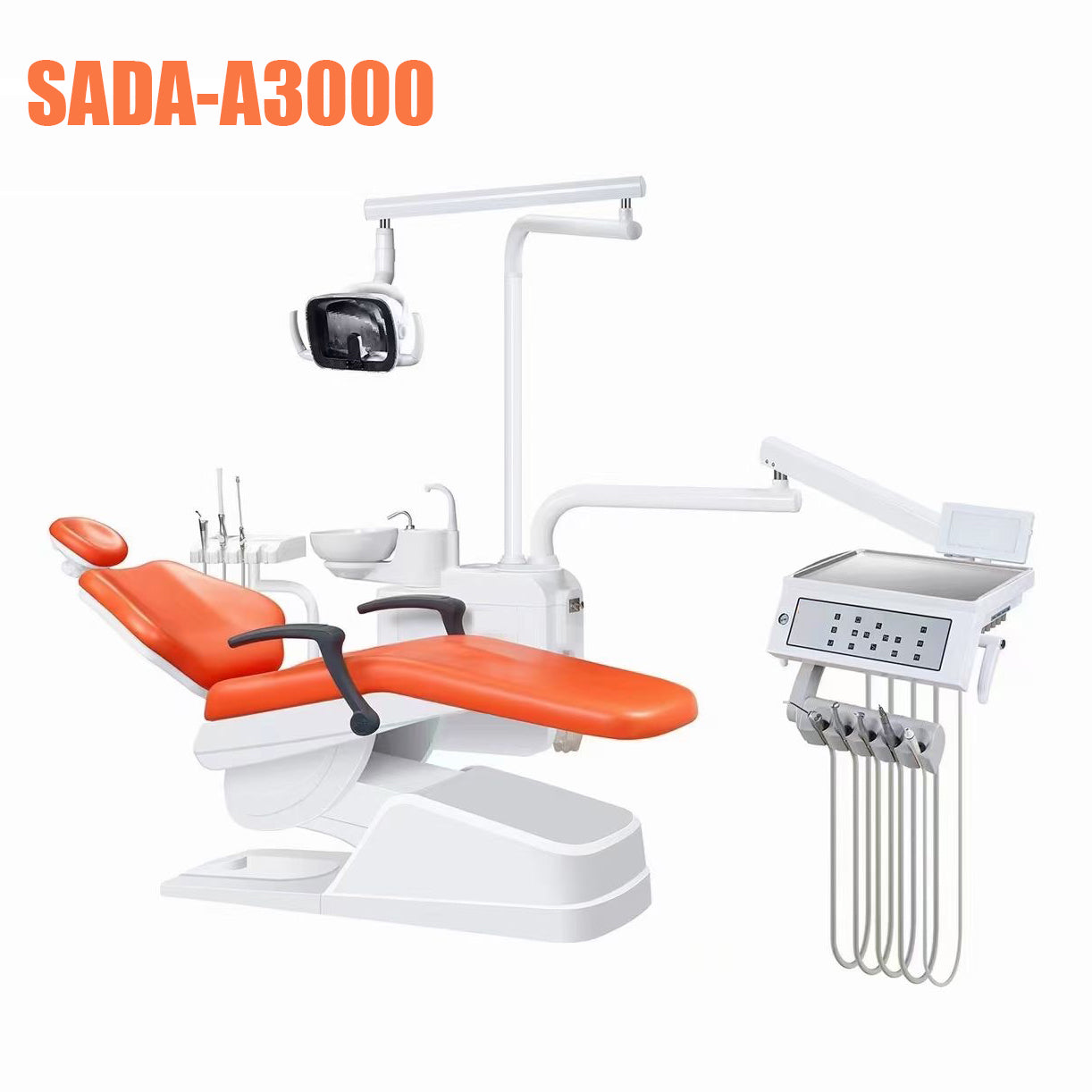

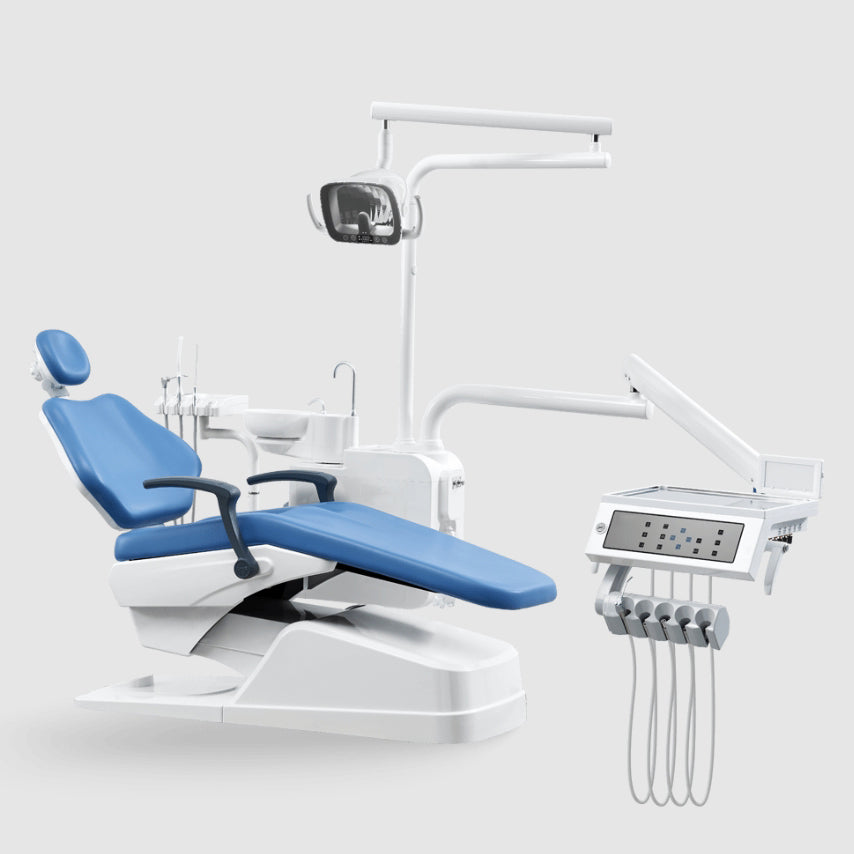

Multi-Functional Electric Dental Chair with LED reflective oral lamp for Clinic Hospital Dental Equipment

SD-A3000 is a Mid-to-high-end Dental Chair.

• Hygiene design to prevent cross infection

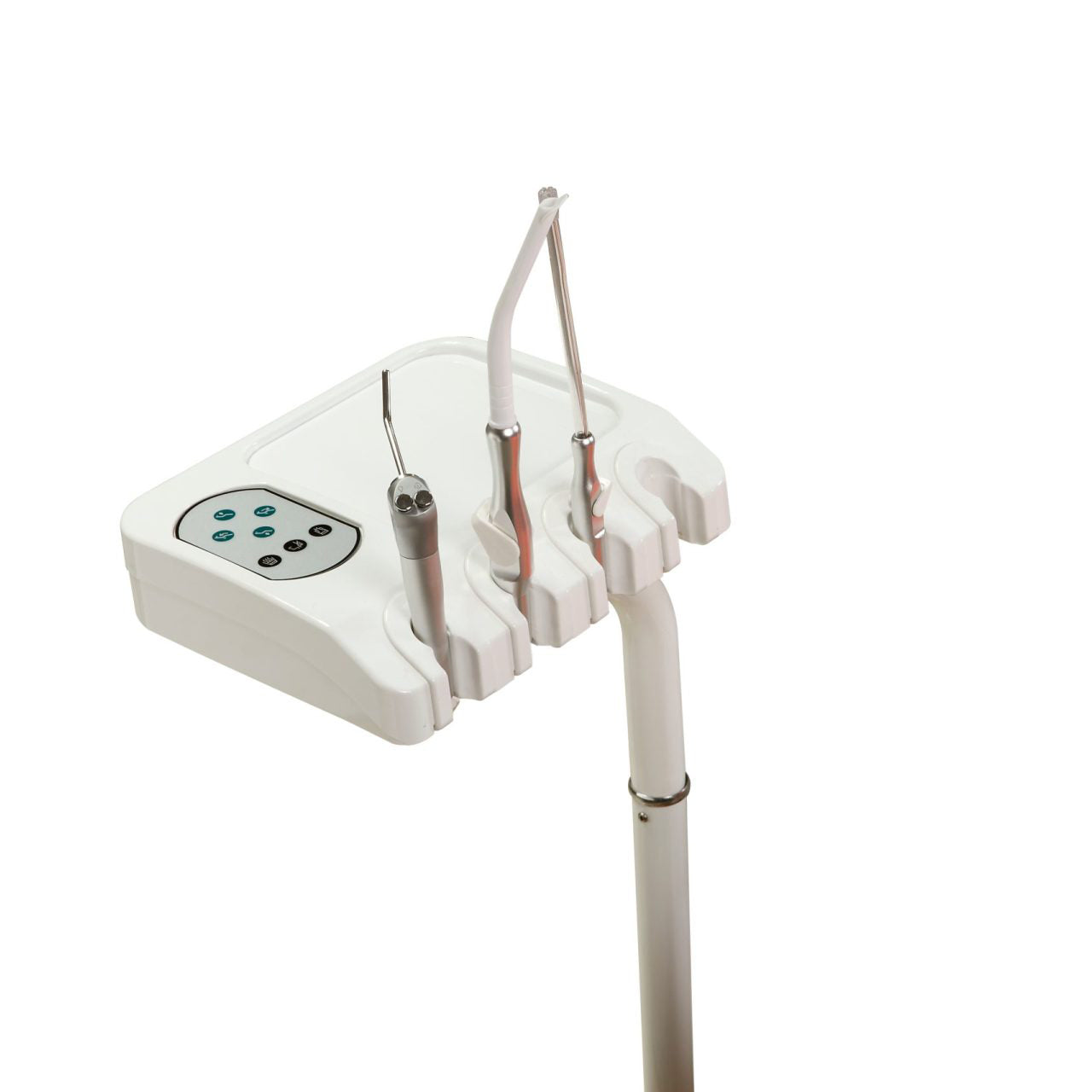

• Rotatable assistant stand for "four-handed" operation
• Three guns 2
• Control system: computer control operating system, computer control board with reset, chair lift, pitch, cold light,
  cuspidor, water supply, heating and other function operation keys.

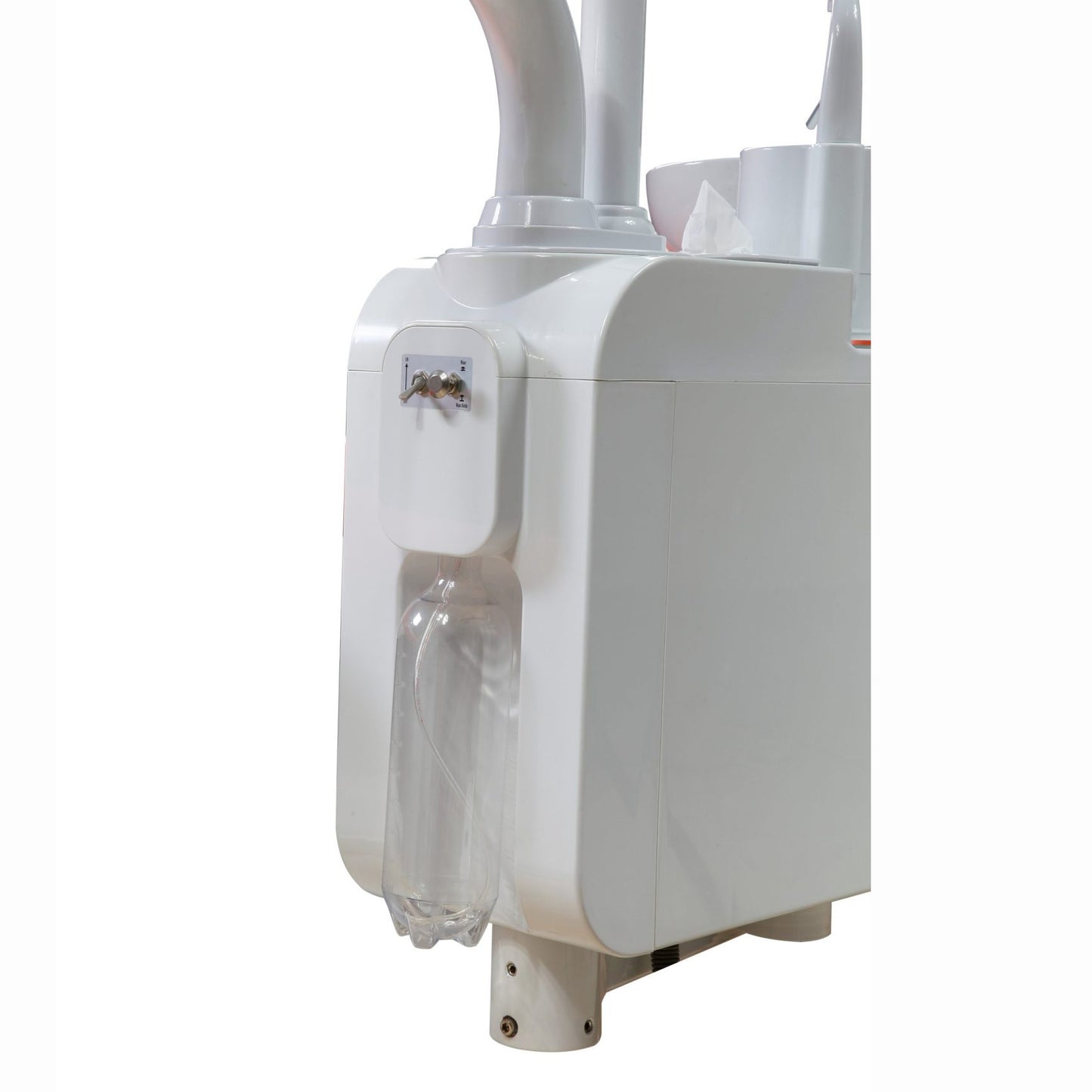

• 1 set of sputum bowl, mouthwash quantitative automatic water supply control system, equipped with automatic heating constant temperature system.


• Strong and weak saliva suction system, built-in dirt collection cup can be easily removed and washed
• Set of LED oral cold light
• 24V low voltage control mouthwash device and low voltage viewer
• 1 set of ceramic bowl that can rotate 90 degrees
• A set of built-in mobile phone water purification system

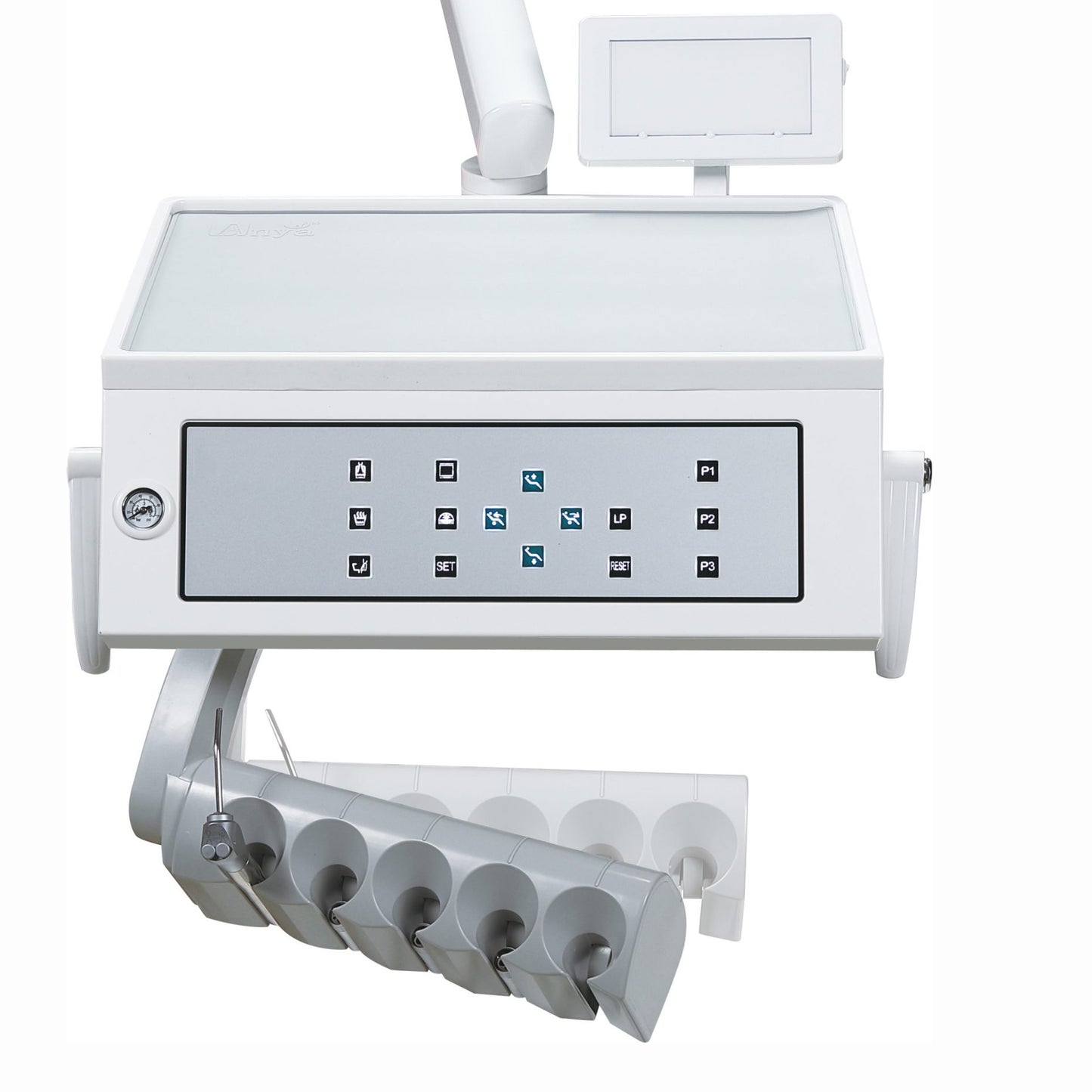

• Air lock instrument arm 1 set
• Multifunctional combined foot switch for controlling mobile phones and dental chairs
• DC silent motor for power system
• U.S. water vapor pipeline
• The dental chair structure is computer-linked, the headrest can be folded and adjusted and pinned freely. The
  two-section headrest is suitable for adults and children. The PU seamless seat cushion can be disassembled, cleaned
  and replaced with the backrest of the body at any time. Dental chair For double armrests
• Inlet water vapor pipeline
• Possess the function of cleaning the filter net and the function of sediment filtering

• Environment 5-40, relative humidity ≤80%
• Power supply: AC 220V 50HZ
• Air pressure: 0.5MPa—0.8 MPa, flow rate is less than 50L / min
• Water source pressure: 0.2MPa—0.4 MPa, flow rate is less than 10L / min
• Input power: 1200VA
• Fuse model: RF1-20, specification: 5x20 6A
• Oral cold light: LED light source; Oral light: The light spot is 800mm away from the lamp surface, the illumination adjustment range is 8000Lux ～ 26000Lux, the temperature rise of the lighting area is ≤5 ℃, and the rotation range of the oral light is ≥120
• Film viewer: Illumination ≥ 6000 Lux
• Water heater: DC24V / 80VA
• DC motor: d.c.24V / 80VA
• Backward tilt angle range: 120mm
• Maximum backward tilt of cushion: ≥10 °
• Dental chair under 135kg
• Machine noise ≤70db (A) (except air compressor)
• Minimum seat ≦ 380mm, highest seat ≧ 720mm
• The armrest can withstand the downward pressure of 335N and the horizontal tension of 220N
• The armrest can withstand the downward pressure of 335N and the horizontal tension of 220N
• Instrument plate: the vertical movement range should be ≥350mm, and the deflection of the plate surface should
  be ≤3 °

What we can do for you?

1.Professional manufacturer over 10years offering competitive price.
2.36 quality inspection procedures + 100% full inspection before shipment.
3.Professional aftersales team, We will always provide you with online after-sales service and at-site training course.
4.Free HD photos and videos for marketing.

Workshop of dental chair:

SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:
