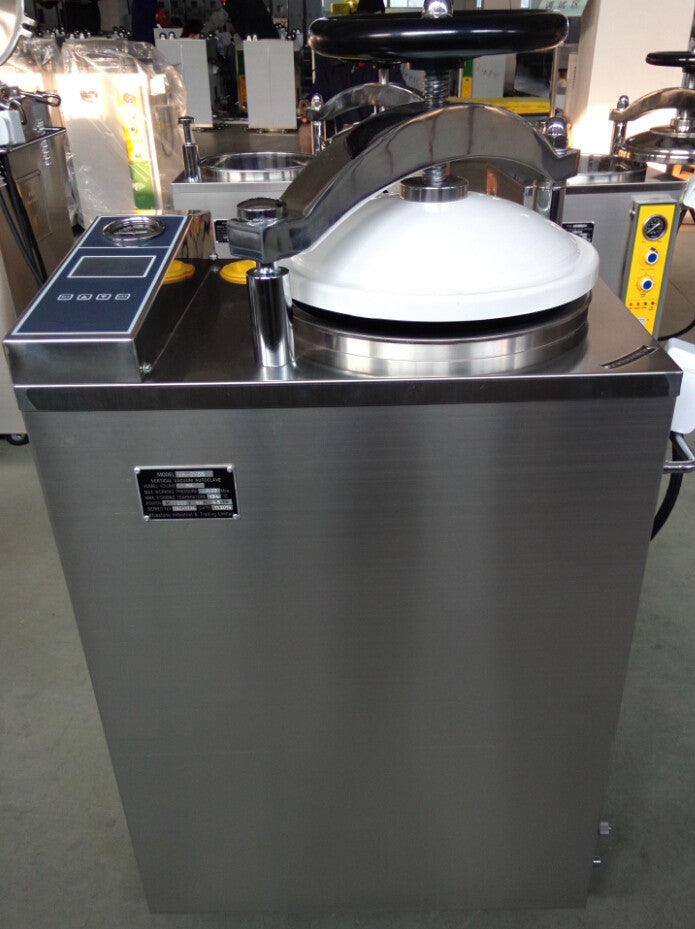

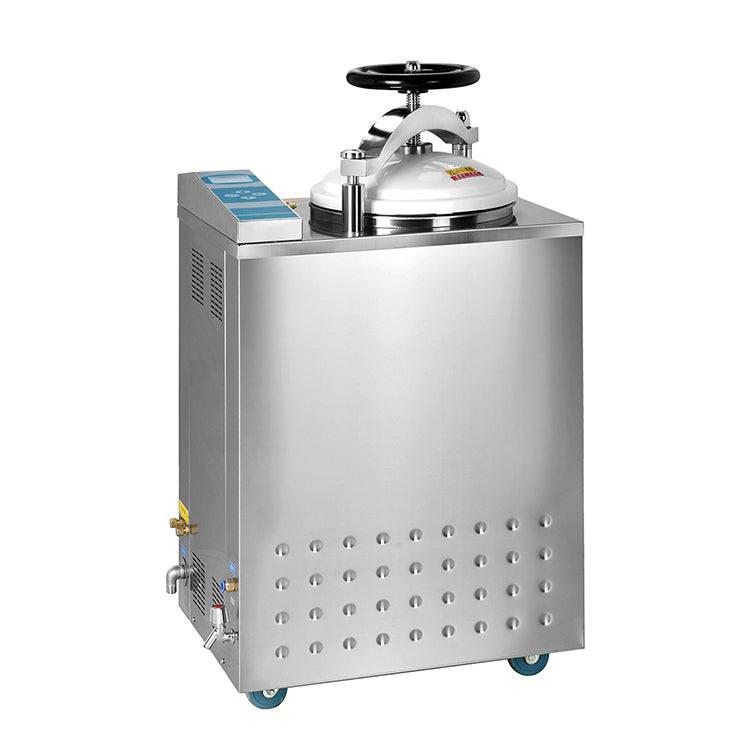

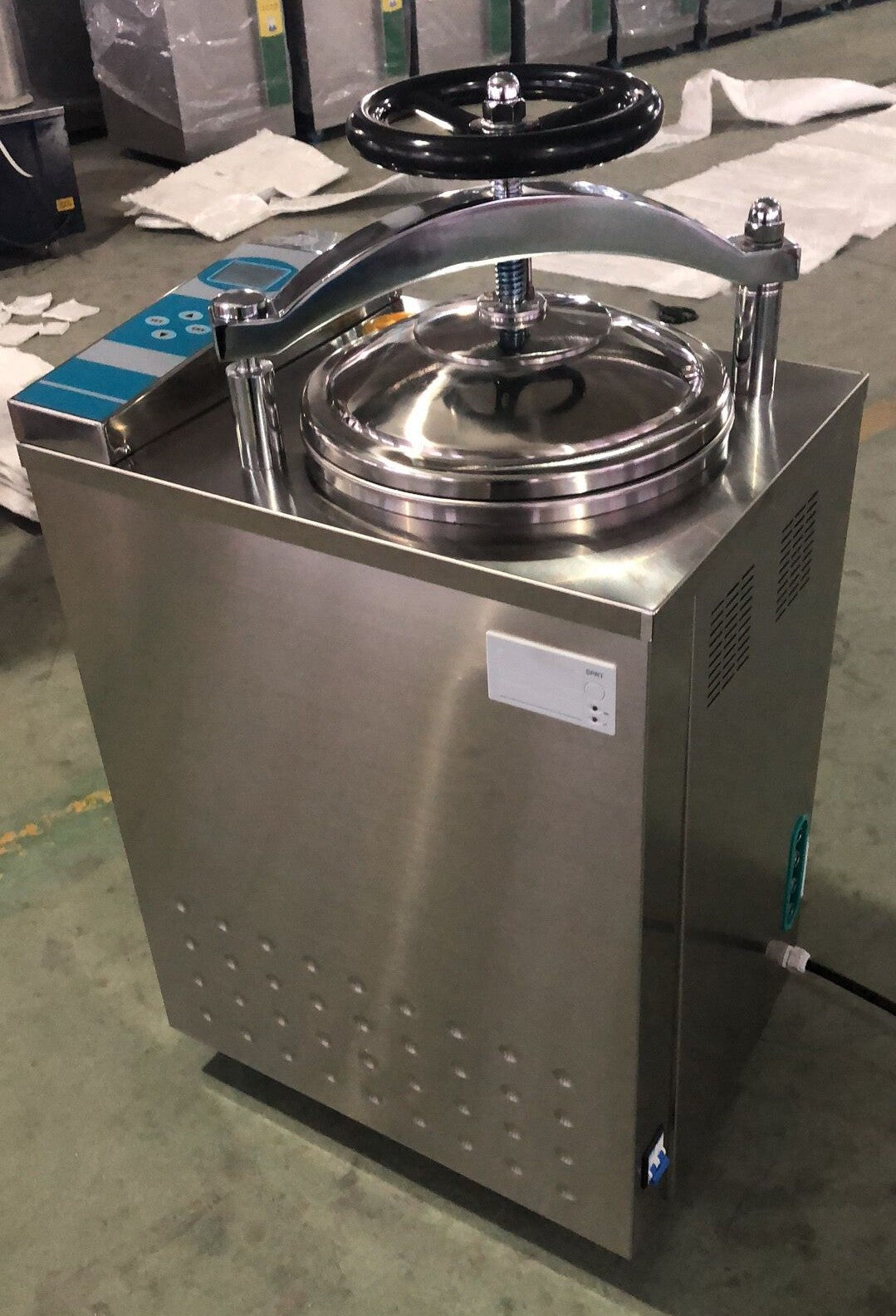

Lab Vertical Autoclave High Press Steam Sterilizer VA-SV

Lab Vertical Autoclave High Press Steam Sterilizer VA-SV

Model: VA-SV
Sterilizing Volume: 35L, 50L, 75L, 100L
Class: Class B, pulse vacuum autoclave
Machine Material: Fully stainless steel 304
Display: LCD display
Control: Processor controlled, fully automatic
Door: Hand wheel type door, safety lock door system
Drying Device: Yes
Configuration: 2 pcs stainless steel baskets
Production time: 15 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.

Brand:Sada Medical
Item NO.:VA-SV
Product Origin:China
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.

Autoclave Machine Features

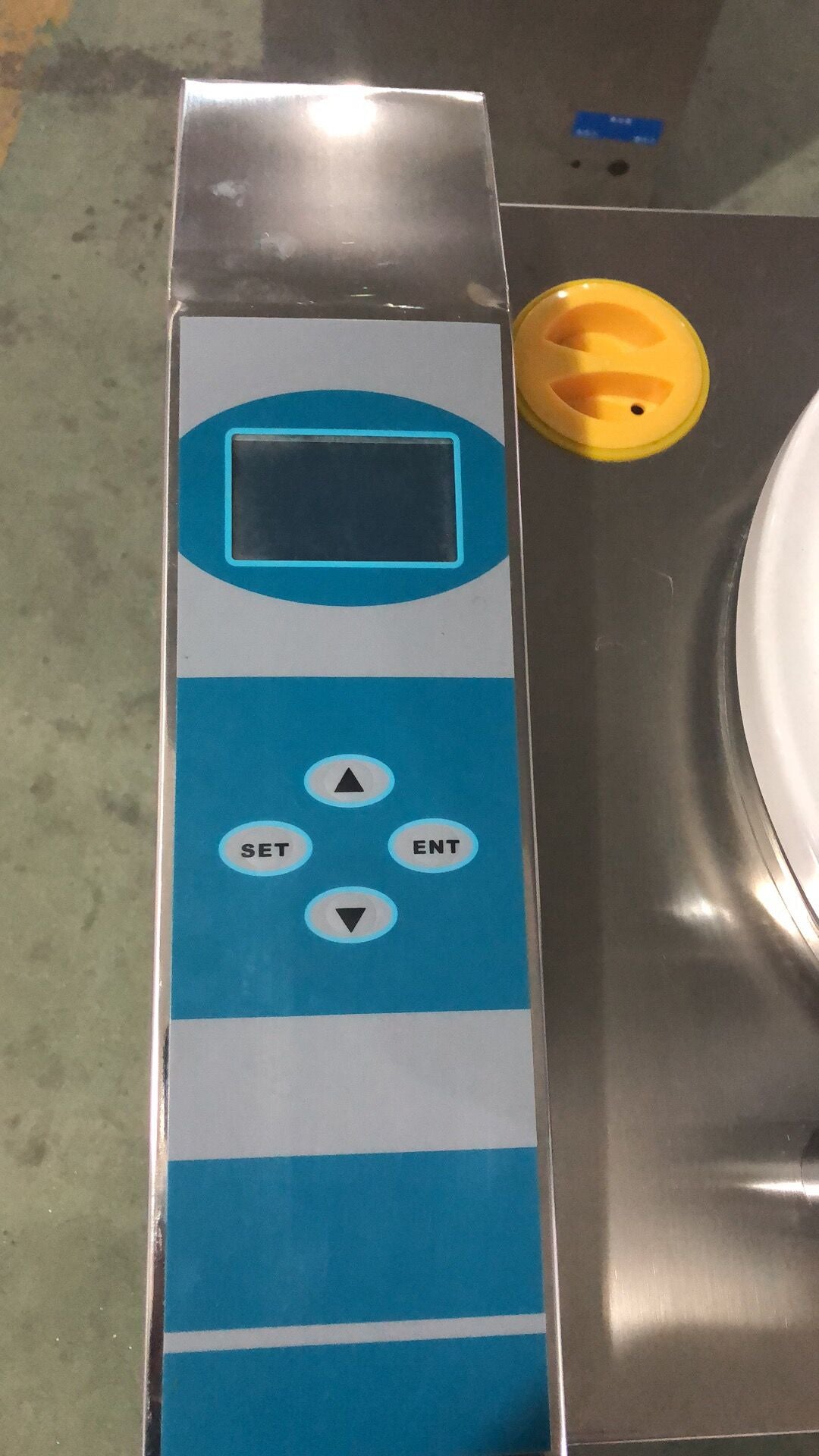

1. Automatically controlled by microprocessor, LCD display of working status, touch type key.
2. Dynamically showed the temperature, pressure time and vacuum rate, and the full cycle.
3. Fully automatically route for water inlet, pulse vacuum, heating, sterilizing, draining, exhausting, vacuum drying.
4. 3 times pulse vacuum, which make the vacuum rate as -0.081 Mpa, and ensure the high extracting of inner air from dressing, A, B type hollowed appliance.
5. With 7 fixed sterilization cycles: Instrument, Textile, Rubber, Fluid, Customize, Vacuum test, BD test
6. Equipped with the PT/TT testing connector, easy to run the testing.
7. Multiple pulse vacuum drying after sterilizing, ensure the nice sterilizing.
8. Equipped with 0.22 µm bacteria filter, ensure the sterile air enter the inner vacuum environment, avoid the second contamination.
9. Hand wheel type of quick-open door structure, self-inflating type seal.
10. Adopted with immersed heating, with high heating efficiency.
11. Steam-water inner circulation system: No steam discharge and the environment for sterilizing will be clean and dry.
12. Automatically shut off with beep reminding after sterilization.
13. Fully high quality stainless steel, equipped with two stainless steel baskets.
14. Water level indication.
15. Equipped with printer.

Sterilization Objects: Unwrapped or Wrapped instruments, Surgical instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.

Safety Protection
1. Heater protection;
2. Anti-dry heating;
3. Safety interlock door;
4. Over-temperature protection;
5. Over-pressure protection;
6. Automatic release safety valve;
7. Electric safety protective device.

Specifications

Model	VA-SV35	VA-SV50	VA-SV75	VA-SV100
Volume	35 Liters	50 Liters	75 Liters	100 Liters
Sterilizing Chamber Volume	Ø318*H450 mm	Ø340*H550 mm	Ø400*H600 mm	Ø440*H650 mm
Working Pressure	0.22 Mpa
Max Working Pressure	0.23 Mpa
Working Temperature	134°C
Adjustment of Temperature	0-134°C
Timer	0-99 min
Heat Average	≤± 1°C
Power	2.5 KW/AC220V. 50Hz	3.5 KW/AC220V. 50Hz	4.5 KW/AC220V. 50Hz	4.5 KW/AC220V. 50Hz
Product Dimension	650*410*1140mm	660*460*1160mm	700*510*1250mm	700*510*1250mm
Package Dimension	570*550*1190mm	820*600*1400mm	820*620*1450mm	820*620*1450mm
Gross Weight/Net Weight	105 kg /95 kg	120 kg /100 kg	172 kg/ 142 kg	176 kg / 146kg



SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices
