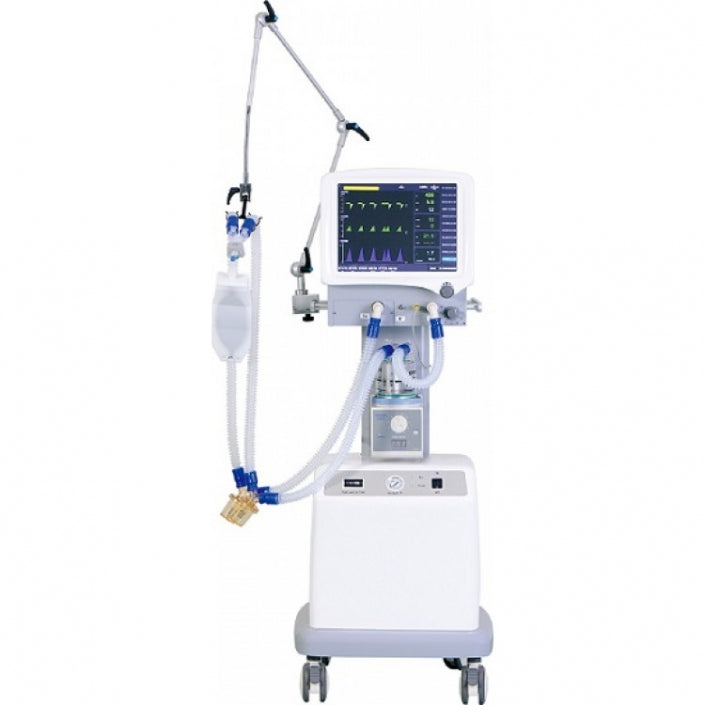

ICU Ventilator Machine Sada Medical
ICU Ventilator Machine Sada Medical
ADULT · PEDIATRIC
Friendly Powerful Reliable
Application
The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Indra-operation, post-operation respiratory support, other respiratory treatment.
Features

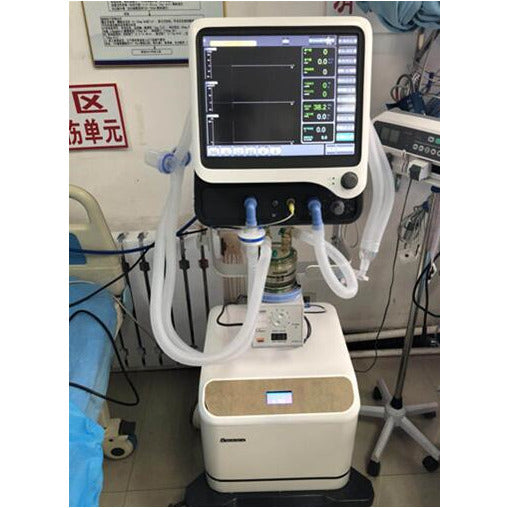

l 15” TFT LCD touch screen displays the ventilation parameters, alarm information and waveforms.

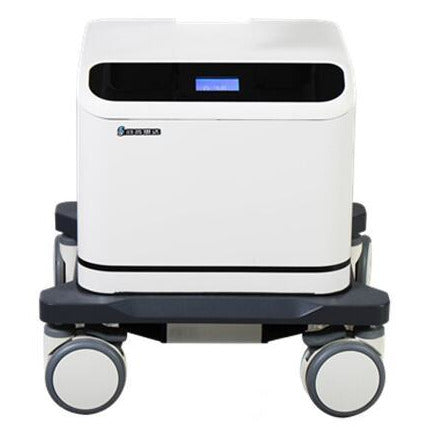

l Air compressor runs stably with low noise, creates quiet environment for doctors and patients.

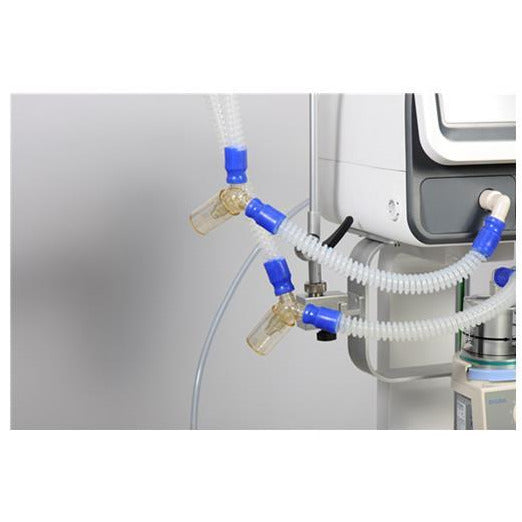

l Integration breathing circuit design.
l Multiple working modes such as volume control and pressure limit.
l Multiple parameters monitoring interface to show clear parameter to the operator, allow operator know the patient conditions in all aspects.
l Real time pressure-time, flow-time loop graphics, pressure volume loop graphics and high precision ETCO2, O2 concentration detection function included.
l Electrical PEEP control
l Breathing valve is disassembly and can be disinfected.
Safety
l Three levels alarm system, visual and sound alarm information.
l With multiple type of alarms, reminding and protection functions.
l Self-check before running, eliminate system mulfuction.
l Advanced power management control technology.
l With built-in backup power supply, when normal power supply shut down, back-up power supply will start work automatically.
l Separate design of electric and gas, keep safety running of ventilator.
| Ventilation modes: | IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV |
| Ventilator parameter ranges | |
| Tidal volume(Vt) | 0 ～ 2000mL |
| Frequency (Freq) | 1bpm ～ 100 bpm |
| Oxygen concentration | 21%-100% |
| I/E | 4:1～1:8 |
| PEEP | 0cmH2O ～ 40 cmH2O |
| Pressure Limit | 20 cmH2O ～ 100 cmH2O |
| Monitored Parameters | |
| Frequency (Freq) | 0 /min ～ 100 /min |
| Tidal volume(Vt) | 0 mL ～ 2500 mL |
| MV | 0 L/min ～ 99 L/min |
| Airway pressure | 0 cmH2O ～ 100 cmH2O |
| Dynamic lung compliance testing | 1mL/cmH2O ～ 1000mL/cmH2O |
| ETCO2 Concentration | 0mmHg ～ 152mmHg (0%-20%) |
| Oxygen concentration | 15 % ～ 100 % |
| Oscillographs display: | |
| P-T(pressure – time) | |
| F-T(flow – time) | |
| P-V loop (pressure – volume loop) | |
| V-T(volume – time ) | |
| ETCO2-T (End-tidal CO2 – time) | |
| Alarms and protection | |
| The AC power failure alarm | Power failure or no connection |
| Internal battery backup low voltage alarm | ≤11.3±0.3V |
| No tidal volume | No tidal volume within 6s |
| High Minute Volume alarm | 5L/min-99L/min |
| Low Minute Volume alarm | 1L/min-30L/min |
| High Airway pressure alarm | 20cmH2O-100cmH2O |
| Low Airway pressure alarm | 0cmH2O-20cmH2O |
| High oxygen concentration alarm | 19%-100% |
| Low oxygen concentration alarm | 18%-99% |
| Continuous pressure alarm | (PEEP+1.5cmH2O) over 16s |
| Suffocation warning | 5-60s |
| Fan error | Show on screen |
| Oxygen deficit | Show on screen |
| The maximum limited pressure | ＜12.5 kPa |
| Working conditions | |
| Gas source | O2, AIR |
| Pressure | 280kPa-600kPa |
| Voltage | ～220V±22V |
| Power frequency | 50Hz ± 1Hz |
| Input power | 900VA (with air compressor) |
| 250VA (without air compressor) | |
| Ventilation modes: | IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV |
| Ventilator parameter ranges | |
| Tidal volume(Vt) | 0 ～ 2000mL |
| Frequence (Freq) | 1bpm ～ 100 bpm |
| Oxygen concentration | 21%-100% |
| I/E | 4:1～1:8 |
| PEEP | 0cmH2O ～ 40 cmH2O |
| Pressure Limit | 20 cmH2O ～ 100 cmH2O |
| Monitored Parameters | |
| Frequence (Freq) | 0 /min ～ 100 /min |
| Tidal volume(Vt) | 0 mL ～ 2500 mL |
| MV | 0 L/min ～ 99 L/min |
| Airway pressure | 0 cmH2O ～ 100 cmH2O |
| Dynamic lung compliance testing | 1mL/cmH2O ～ 1000mL/cmH2O |
| ETCO2 Concentration | 0mmHg ～ 152mmHg (0%-20%) |
| Oxygen concentration | 15 % ～ 100 % |
| Graphical display: | |
| P-T(pressure – time) | |
| F-T(flow – time) | |
| P-V loop (pressure – volume loop) | |
| V-T(volume – time ) | |
| ETCO2-T (End-tidal CO2 – time) | |
| Alarm and protection | |
| The AC power failure alarm | Power failure or no connection |
| Internal battery backup low voltage alarm | ≤11.3±0.3V |
| No tidal volume | No tidal volume within 6s |
| High Minute Volume alarm | 5L/min-99L/min |
| Low Minute Volume alarm | 1L/min-30L/min |
| High Airway pressure alarm | 20cmH2O-100cmH2O |
| Low Airway pressure alarm | 0cmH2O-20cmH2O |
| High oxygen concentration alarm | 19%-100% |
| Low oxygen concentration alarm | 18%-99% |
| Continuous pressure alarm | (PEEP+1.5cmH2O) over 16s |
| Suffocation warning | 5-60s |
| Fan error | Show on screen |
| Oxygen deficit | Show on screen |
| The maximum limited pressure | ＜12.5 kPa |
| Working conditions | |
| Gas source | O2,AIR |
| Pressure | 280kPa-600kPa |
| Voltage | ～220V ±22V |
| Power frequency | 50Hz ± 1Hz |
| Input power | 900VA (with air compressor) |
| 250VA (without air compreesor) |
