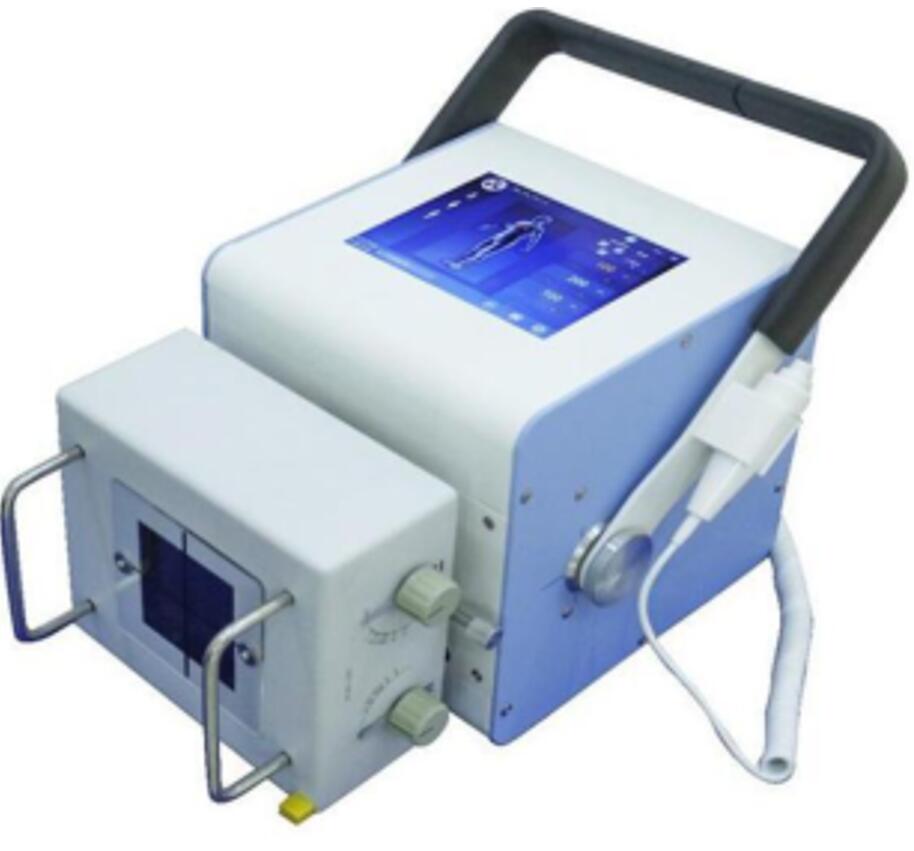

High-Frequency Portable X-ray Machine SD-NKX-100

High-Frequency Portable X-ray Machine SD-NKX-100

Features

  1. Produced by high-frequency inverter technology, stable high-voltage output can get good image quality;
  2. A compact design, easy to carry and work in different regions and locations;
  3. There are three exposure control methods: remote control, hand brake and interface buttons;
  4. Fault self-diagnosis and self-protection;
  5. You can choose push-button or touch screen
  6. Optional: Trolley


Technical Specification

PARAMETER

SPECIFICATION

Maximum power

5KW

Photography KV range

40-50KV、40-60KV、40-80KV、40-100KV、40-110KV

Photography mA range

100mA、80mA、63mA、50mA、32mA

mAs range

0.32-315 mAs

Exposure time range

0.01-6.3s

working frequency

≥30 kHz

Input power type

220V±10%, 50Hz/60Hz

Host size

37(L)×26(W)×23(H)cm

Weight

21KG

Inverter method

PWM(Pulse width modulation)
