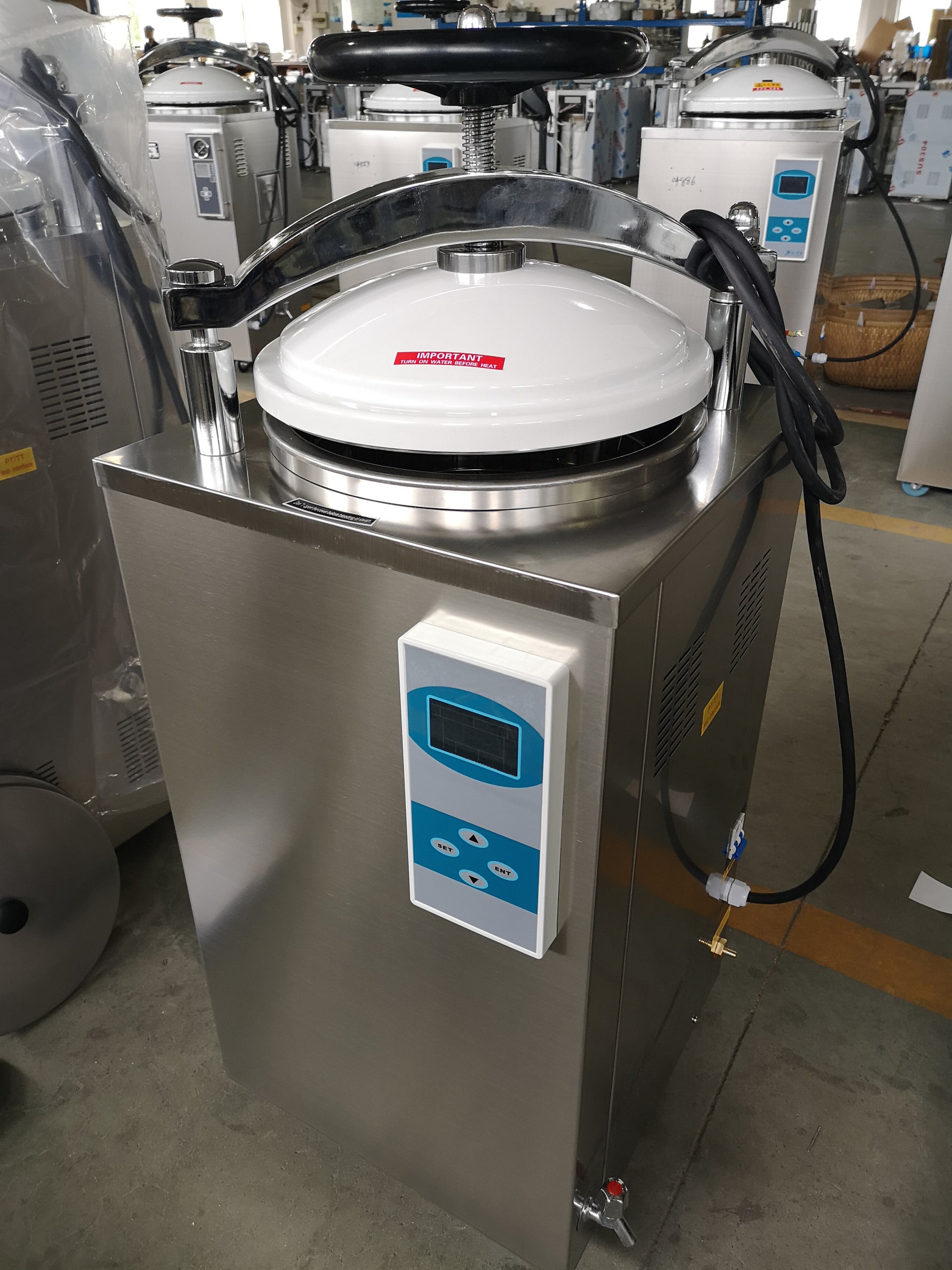

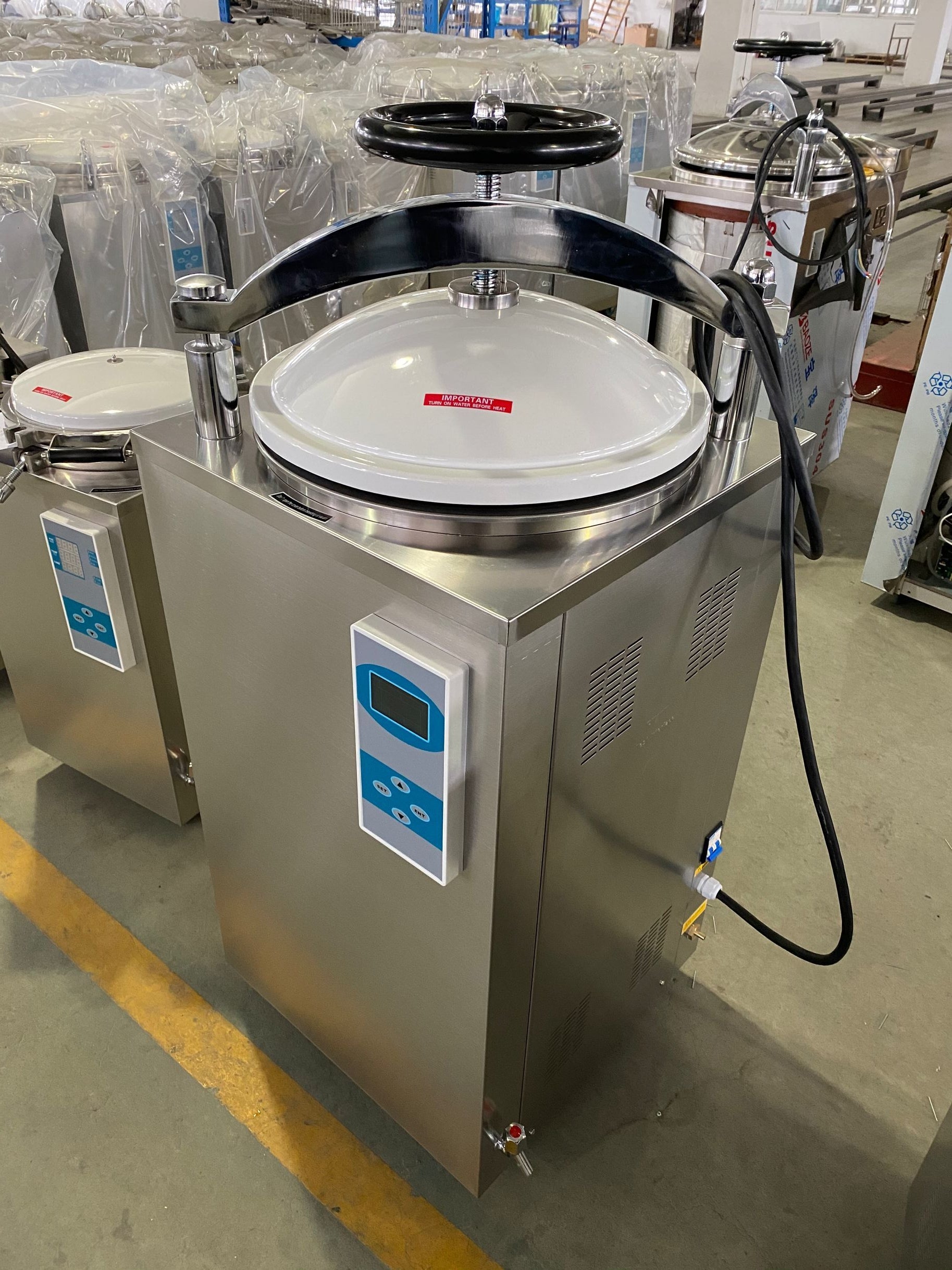

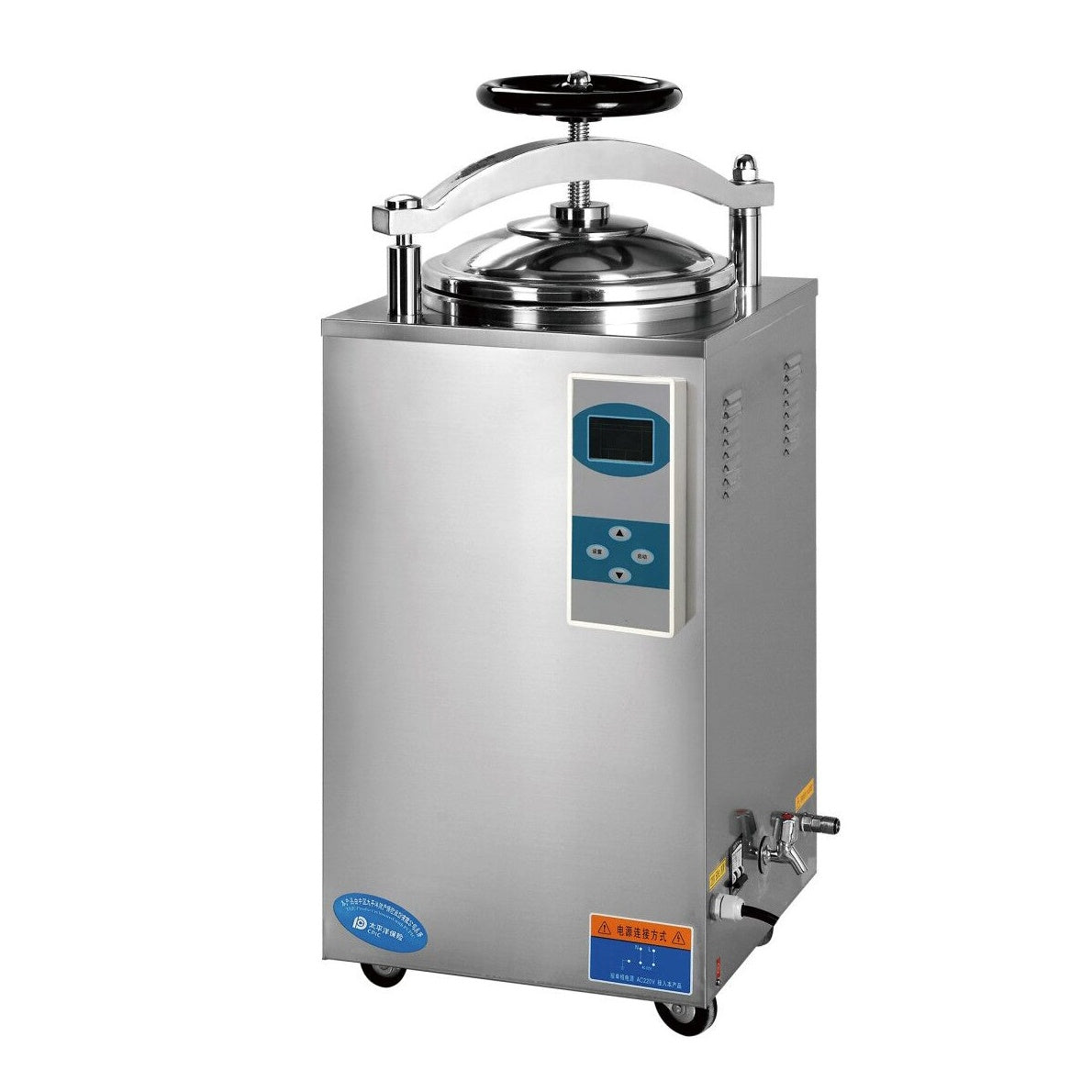

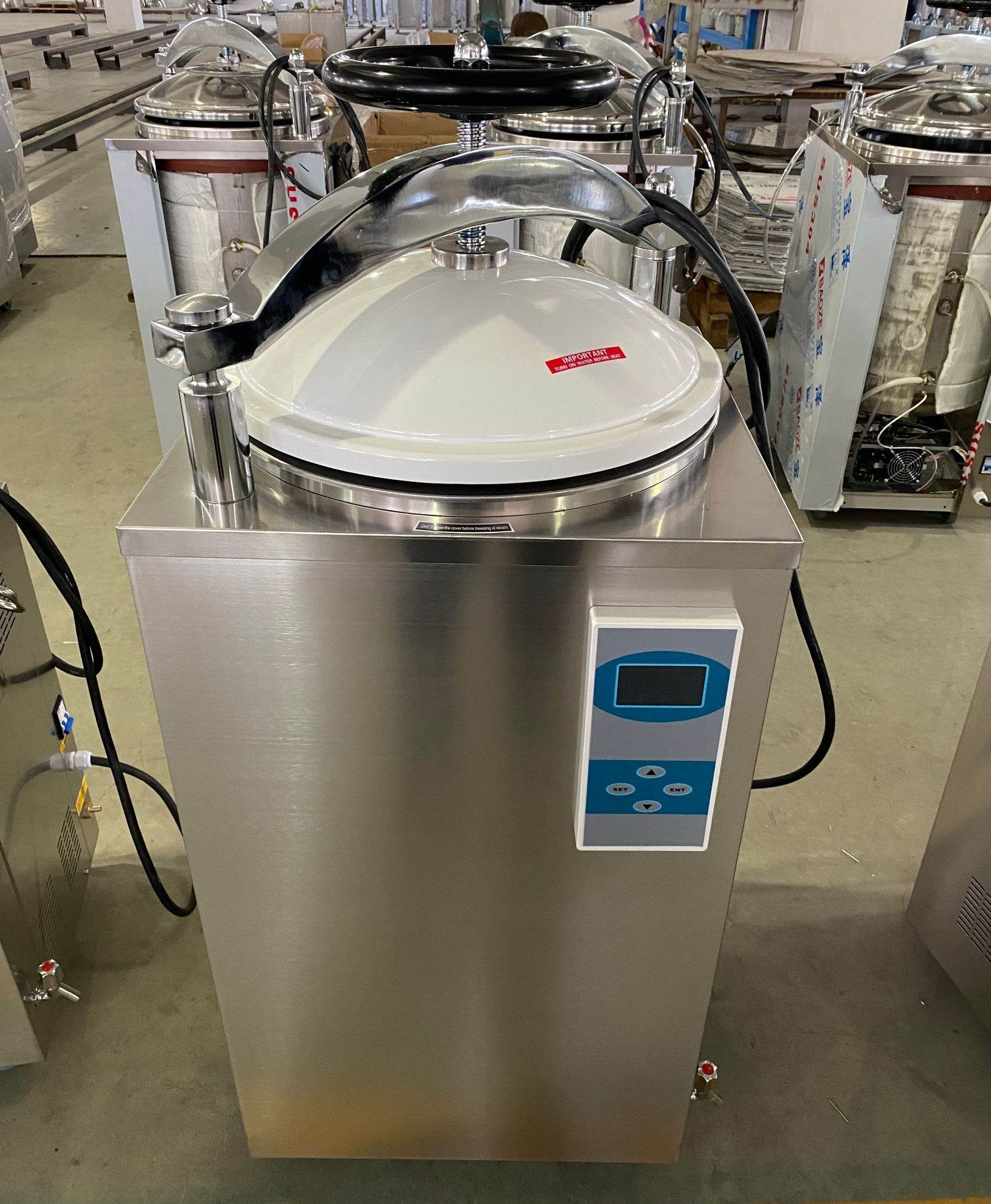

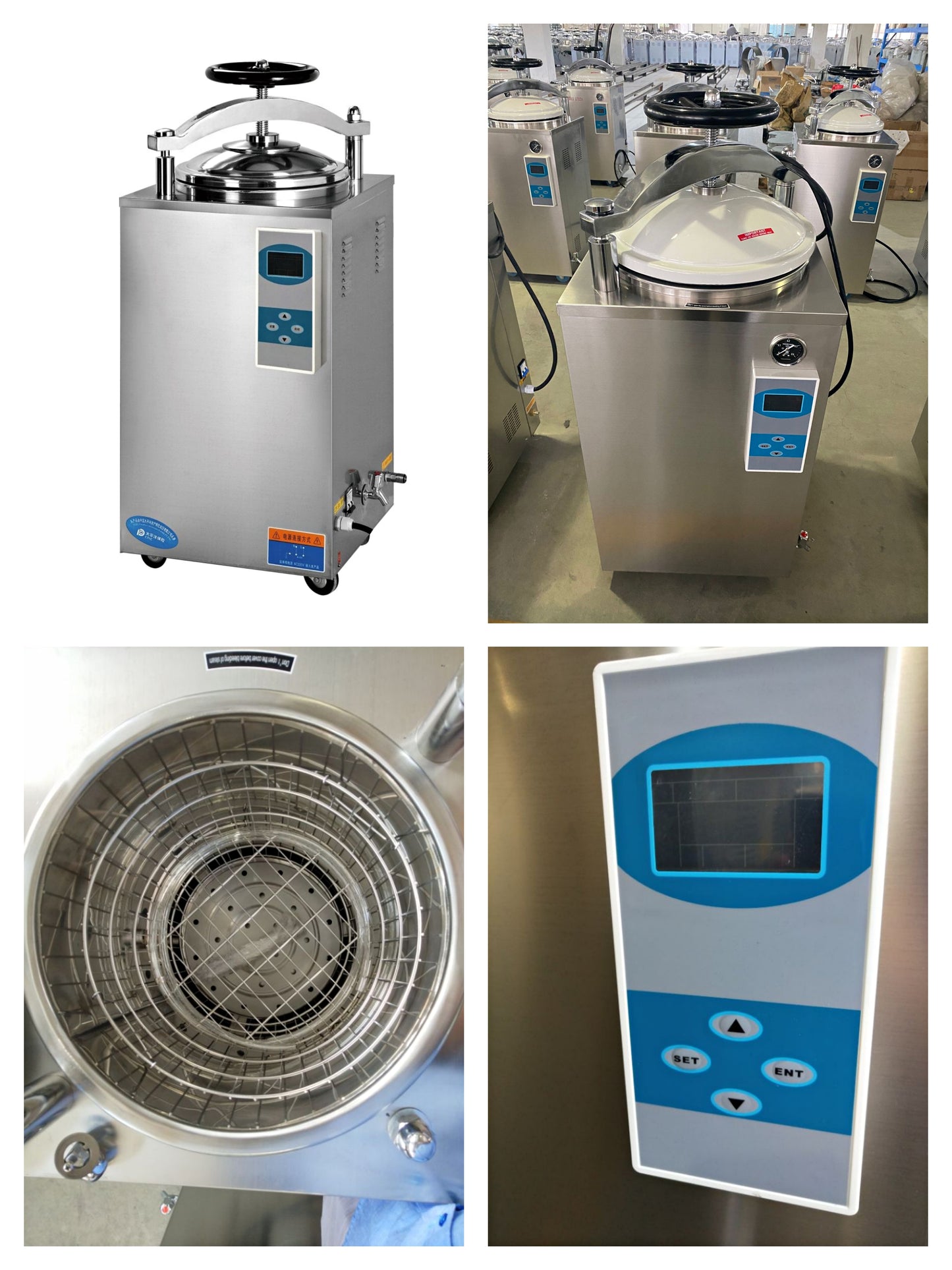

Automatic Medical Vertical Autoclave VA-SD
Automatic Medical Vertical Autoclave VA-SD
Automatic Medical Vertical Autoclave VA-SD
Model: VA-SD
Chamber Capacity: 35L, 50L, 75L, 100L
Class: Class N
Machine Material: Fully stainless steel 304
Display: Digital display
Control: Processor controlled
Door: Hand wheel type door, safety lock door system
Drying Device: USD180 if need

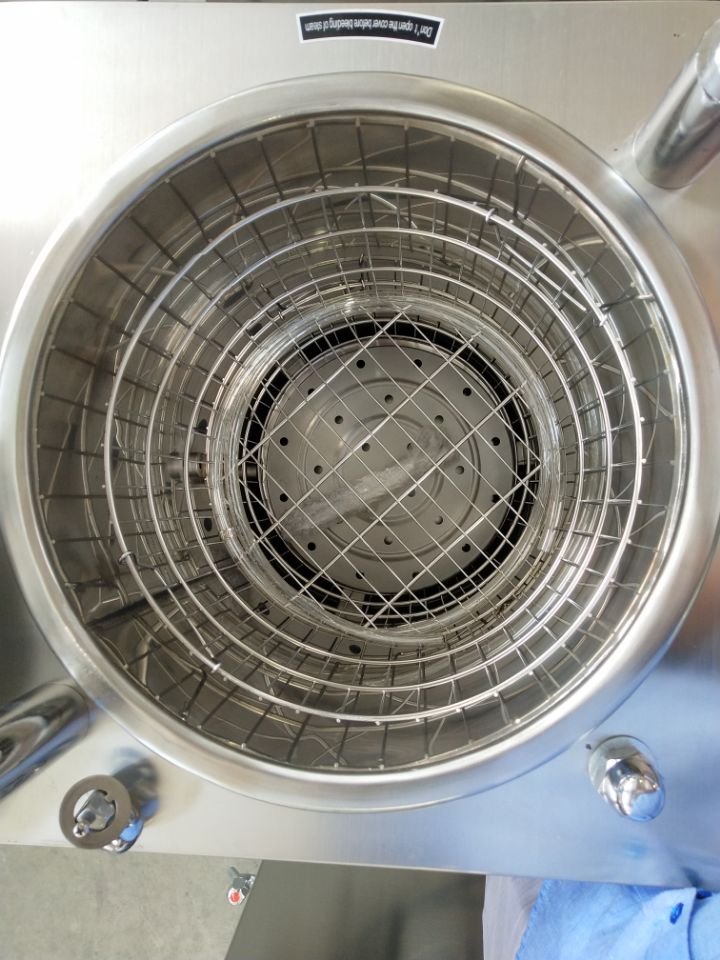

Configuration: 2 pcs stainless steel baskets
Production time: 15 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.
Brand:Sada Medical
Product Origin:China
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Features
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status, touch type key
5.Over temperature & over pressure auto-protection
6.Auto discharge the cool air, and steam discharging automatically after sterilization
7.Self-inflating type seal
8.Safe protection of water lacking
9.Easy to operate, safe and reliable
10.With two stainless steel sterilizing baskets
11.Automatically shut off with beep reminding after sterilization
12.Possible to install drying system according request
Safety Device
1. Heater protection
2. Anti-dry heating
3. Safety interlock door
4. Over-temperature protection
5. Over-pressure protection
6. Automatic release safety valve
7. Electric safety protective device.
Technical Specifications
| Model | VA-SD35 | VA-SD50 | VA-SD75 | VA-SD100 |
| Volume | 35 Liters | 50 Liters | 75 Liters | 100 Liters |
| Sterilizing Chamber Volume | Ø318*H450 mm | Ø340*H550 mm | Ø400*H600 mm | Ø440*H650 mm |
| Working Pressure | 0.22 Mpa | |||
| Max Working Pressure | 0.23 Mpa | |||
| Working Temperature | 134°C | |||
| Adjustment of Temperature | 105-134°C | |||
| Timer | 0-99 min or 0-99 h 59 min | |||
| Heat Average | ≤± 1°C | |||
| Power | 2.5 KW/AC220V. 50Hz | 3.5 KW/AC220V. 50Hz | 4.5 KW/AC220V. 50Hz | 4.5 KW/AC220V. 50Hz |
| Product Dimension | 450*450*1010mm | 510*470*1130mm | 560*560*1120mm | 540*560*1250mm |
| Package Dimension | 570*550*1150mm | 590*590*1280mm | 650*630*1280mm | 680*630*1370mm |
| Gross Weight/Net Weight | 72 kg /65 kg | 88 kg/ 68 kg | 100 kg/ 80 kg | 110 kg / 85kg |
Video of VA-SD Autoclave:
SADA MEDICAL Quality Standards:
ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices
CERTIFICATES:
SADA MEDICAL Workshop:
Catalog, Brothures and User Manual Please refer below Link:
https://www.sadamedical.com/pages/catalog-download
Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.
If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
