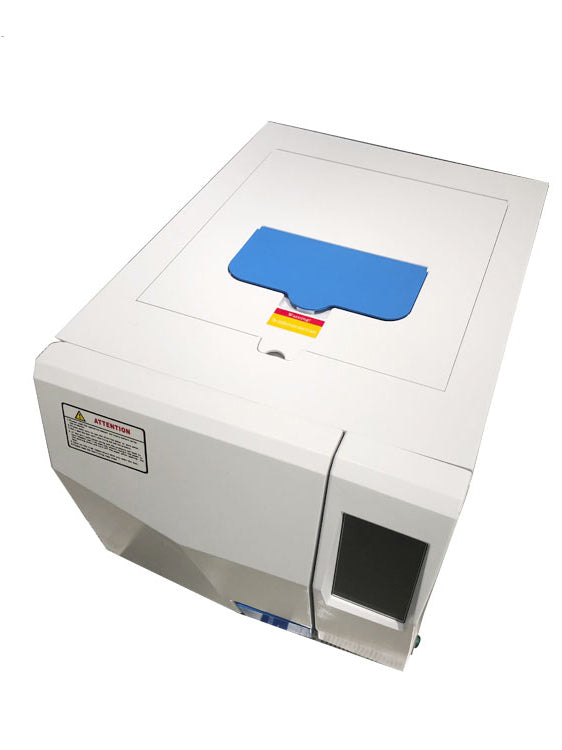

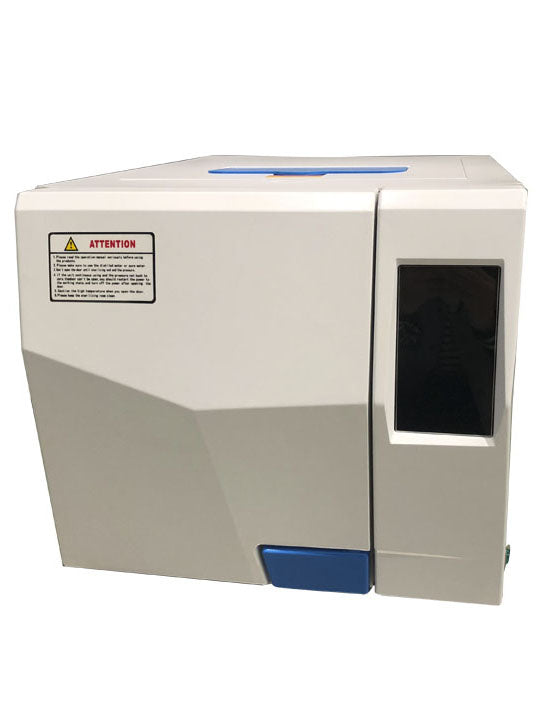

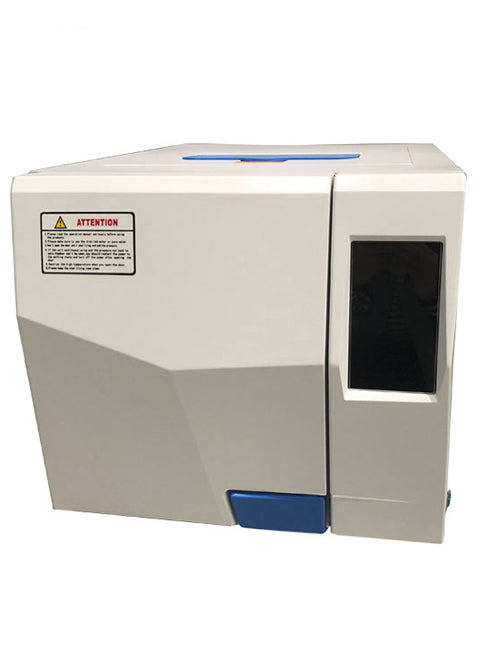

20L 24L TS-CD Steam-Water Inner Circulation System Table Top Steam Sterilizer

20L 24L TS-CD Steam-Water Inner Circulation System Table Top Steam Sterilizer

20L 24L Class N Table Top Steam Sterilizer

Brand: SADA Medical

Model NO.: TS-CD
Product Origin:China

Medical Instrument Sterilization Autoclave are widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, funeral homes, dentistry, and prosthetics fabrication.

They vary in size and function depending on the media to be sterilized. Typical loads include laboratory glassware, other equipment and waste, surgical instruments and medical waste.

Sterilization Objects: Unwrapped or Wrapped instruments, Sugircal instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.

Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time:10 – 15 working days.

Features:

For 4~6 minutes rapidly sterilizing.

Digital display of working status, touch type key.

With 3 fixed cycles of sterilizing program and adjustable for user.

The whole process of water adding, temperaturerising, sterilizing, drying steam discharging controlled automatically.

Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry. Safe protection of water lacking.

Exhaust the cool air automatically.

Door safety lock system. With four stainless steel sterilizing plates. The chamber of the sterilizer is made of stainless steel.

Automatically shut off with beep reminding after sterilization. With drying function.

    MODEL TS-CD20 TS-CD24 TS-CD35 TS-CD50
    Sterilizing chamber volume 20L 24L 35L  50L
    Ф250 x 420mm Ф250 x 520mm Ф300 x 500mm  Ф340 x 550mm
    Working pressure 0.22Mpa
    Working temperature 134ºC
    Temperature adjust range 105~134ºC
    Timer range 0~99min
    Heat average ≤±1ºC
    Power 1.5KW/AC220V.50Hz 2.7KW/AC220V.50Hz
    Sterilizing plate 340 x 200 x 30(3piece) 400 x 200 x 30(3piece) 400 x 200 x 30(4piece) 50() x 250 x 30(4piece)
    Dimension 480 x 480 x 380 580 x 480 x 384 730x550x510 770 x 600 x 540
    Exterior package dimension 700 x 580 x 50() 800 x 580 x 500 810 x 680 x 650 88() x 730 x 700
    G.W/N.W 43/40kg 50/45kg 90/ 73kg 105/86kg

    After-sale Service: 1 year quality guarantee; Question response within 24 hours; Video or photos instruction guide.



    SADA MEDICAL Quality Standards:

    ISO 9001:2015 Quality Management Systems
    EN ISO 13485:2016 Quality Management System - Medical Devices

    CERTIFICATES:


    SADA MEDICAL Workshop:


    Video of SADA MEDICAL Autoclaves:

    Catalog, Brothures and User Manual Please refer below Link:

    https://www.sadamedical.com/pages/catalog-download

    Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

    If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
