SD-DZ Hydrogen Peroxide Plasma Sterilizer | Fast & Safe Medical Sterilization

Name: SD-DZ Hydrogen Peroxide Plasma Sterilizer | Fast & Safe Medical Sterilization
Brand: Sada Medical
Availability: InStock

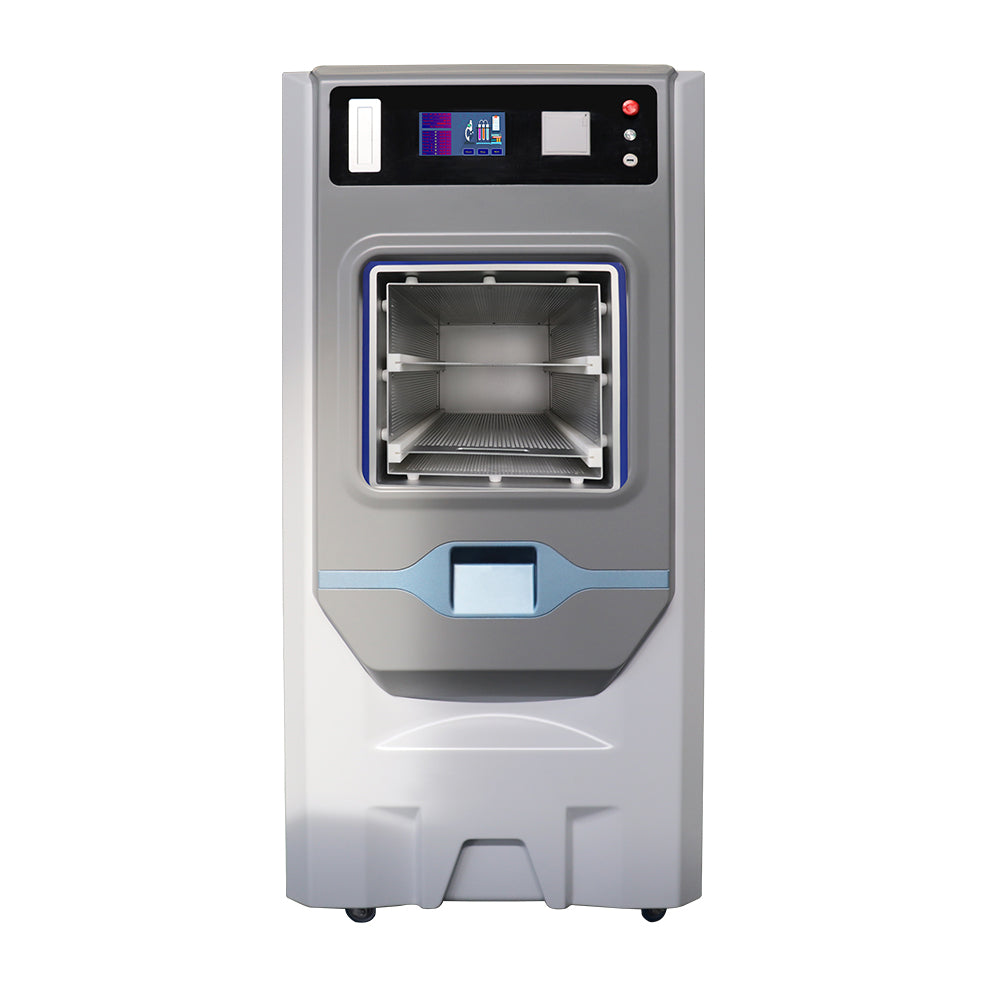

Hydrogen Peroxide Low-Temperature Plasma Sterilizer | SD-DZ | Fast & Safe Medical-Grade Sterilization

Product Introduction:

The SD-DZ Hydrogen Peroxide Plasma Sterilizer offers fast (35-55 min), low-temperature (40°C-60°C), and fully automatic sterilization, ensuring safe, residue-free disinfection for surgical instruments, endoscopes, and precision tools—ideal for hospitals, labs, and clinics

Key Features & Benefits

✅ Low-Temperature & High-Efficiency Sterilization

Operates at 40°C-60°C, ensuring no heat damage to delicate medical devices.
Uses hydrogen peroxide (H₂O₂) plasma technology for superior sterilization.
Fast sterilization cycle: 35-55 minutes, improving workflow efficiency.

✅ Fully Automatic Operation & Smart Controls

One-touch start-to-finish operation for ease of use.
Infrared sensor automatic door ensures hands-free operation.

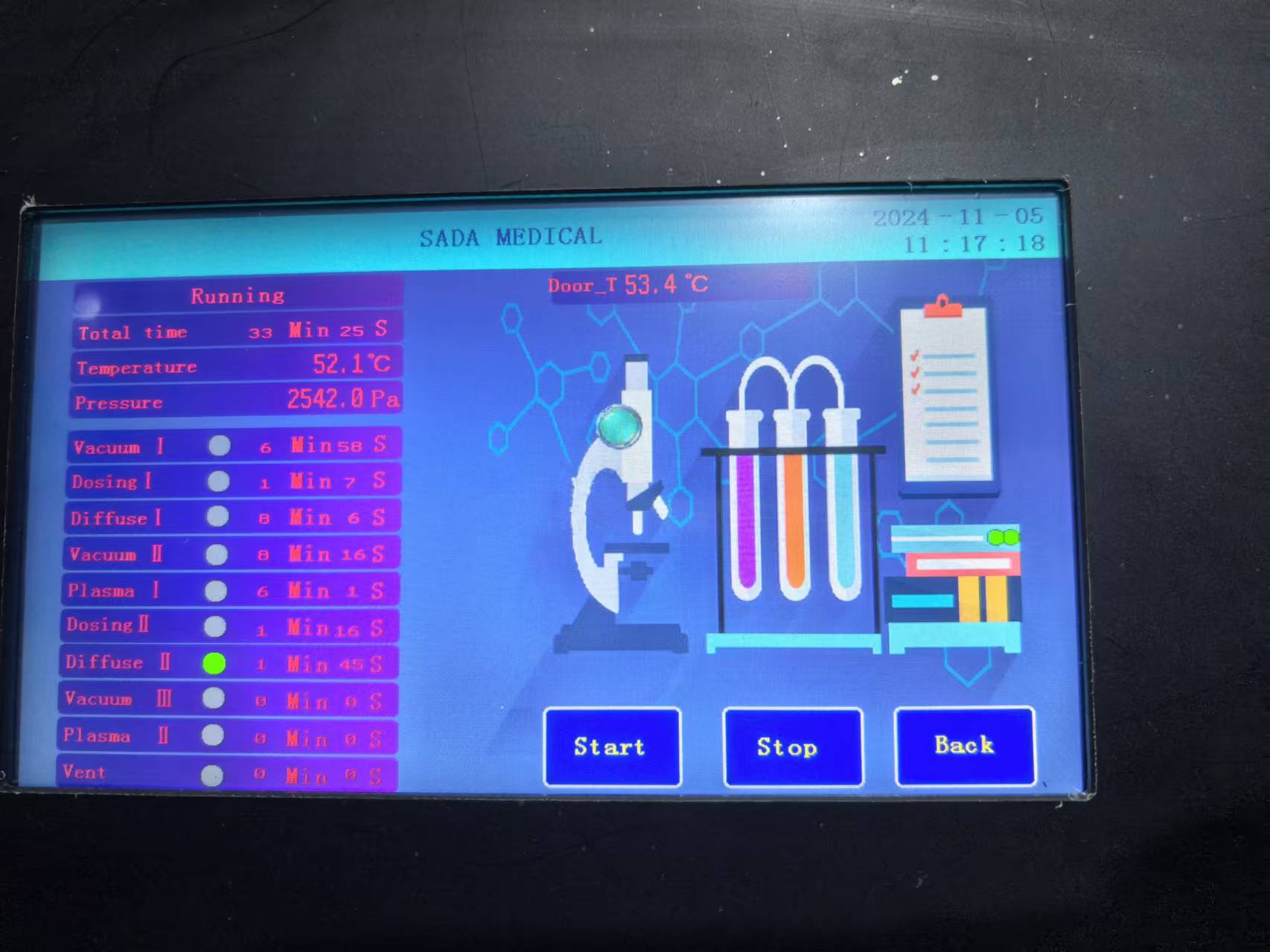

7-inch color LCD screen provides real-time status updates and monitoring.

✅ Advanced Safety & Filtration System

Medical-grade HEPA filtration system removes residual sterilizing gas with 99.5% efficiency.
Built-in alarms for overpressure, overheating, and system malfunctions.
Automatic air replacement system ensures operator safety.

✅ Large Capacity & Versatile Application

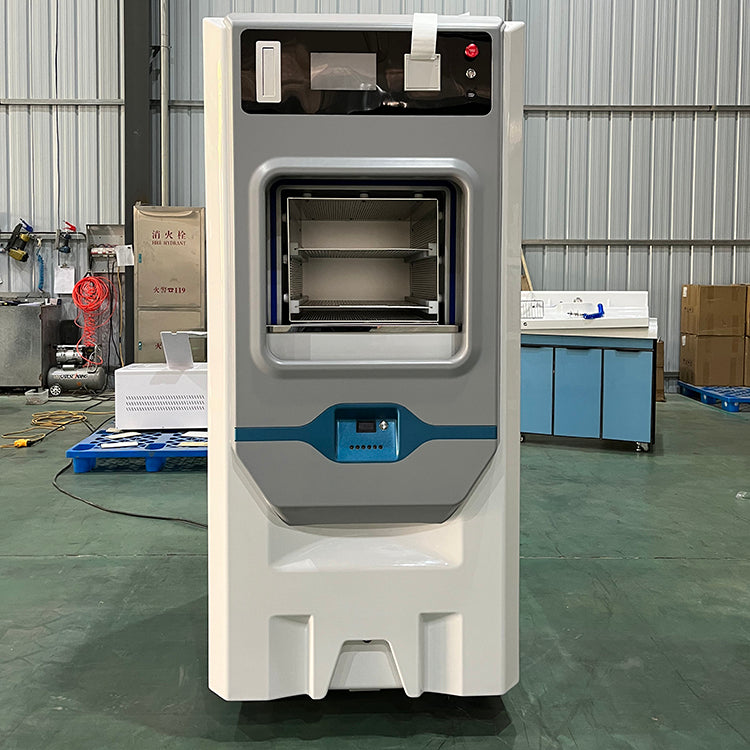

Spacious 108L/135L/192L chamber, accommodating multiple instruments per cycle.
Suitable for surgical instruments, endoscopes, dental tools, and high-precision medical equipment.
Designed for hospitals, research laboratories, pharmaceutical facilities, and veterinary clinics.

Why Choose the SD-DZ?

✔ Fast & Effective – Short sterilization cycles improve efficiency.
✔ Safe & Reliable – Advanced safety features ensure operator and equipment protection.
✔ Fully Automated – Hands-free operation and intelligent control system.
✔ Medical-Grade Compliance – Trusted by professionals worldwide.

Ideal Applications

🏥 Hospitals & Clinics – Sterilization of surgical instruments, endoscopes, and dental tools.
🔬 Laboratories & Pharmaceuticals – Suitable for sterilizing lab equipment and production tools.
🐾 Veterinary & Beauty Industry – Safe disinfection of medical and cosmetic instruments.

Technical Specifications

Models	SD-DZ 220	SD-DZ 100	SD-DZ 130
Chamber Volume	190 Liters	100 Liters	130 Liters
Construction	5052 Aluminium
Processing Temperature	Below 55°C
Control System	Siemens PLC
Display	7” Touch Screen
Printer	Thermal Printer
Touch Screen Functions	Phase Temperature Date and time Cycle Selected Alert message
Data Storage	Memory Card
Total Cycle Time	Short cycle 30 minutes , long cycle 50 minutes
Noise	< 60 db
Door	One
Alarm	Door Lock Power Failure Low / High Temp. range Vacuum & Pressure
Peripheral Devices	Biological Incubator
Power Consumption	2.5 KVA
Power Supply	220 V, Single Phase 50 Hz
Mobility	4 Wheels
Standards	EN ISO 9001:2016, EN ISO 13485:2016 EN ISO 14001 , EN 61010-2-040, EN 61010-2-042

Certificate

Sterilizer appearance display video:

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.
